Description

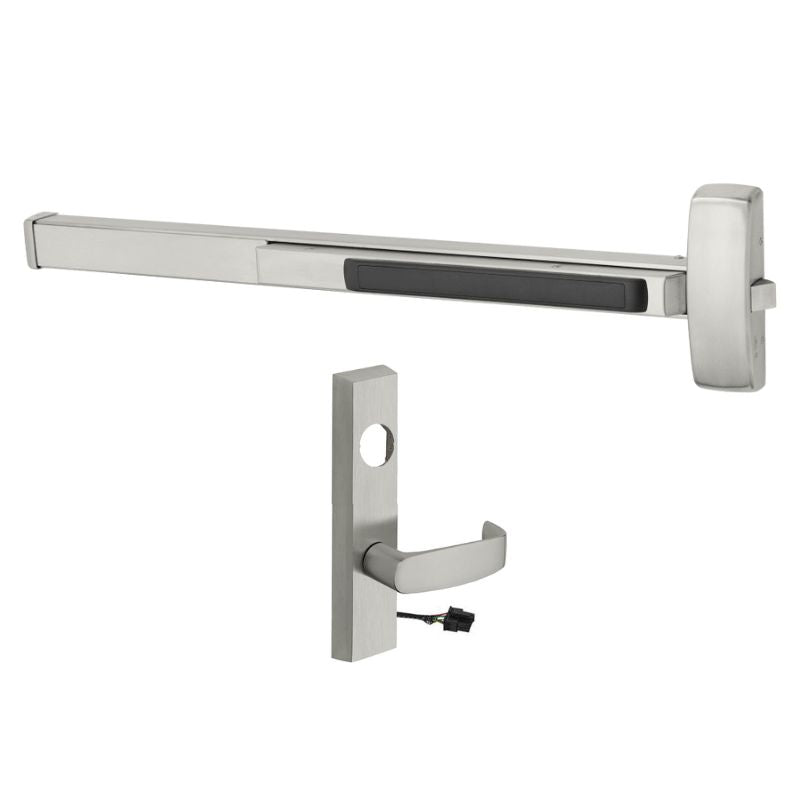

Sargent 12-8876-G-ETL-12V Fire Rated Rim Exit Device, 12V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 43-48 Inch Door, Less Cylinder, No Dogging, Grade 1
The Sargent 12-8876-G-ETL-12V Fire Rated Rim Exit Device is designed for use on 43-48 inch doors and features a 12V fail secure mechanism, L-lever, and power off unlocks lever key retracts latch. This grade 1 device does not require dogging and does not come with a cylinder.
76 Electrified ET Trim - Fail Secure
776-8-ETL-12V-LC Electrified Lever Trim, ETL Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder
8800 Series Rim Exit Devices
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 48" |
| Hand | RHR OR LHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
Document Center
Handing Chart
