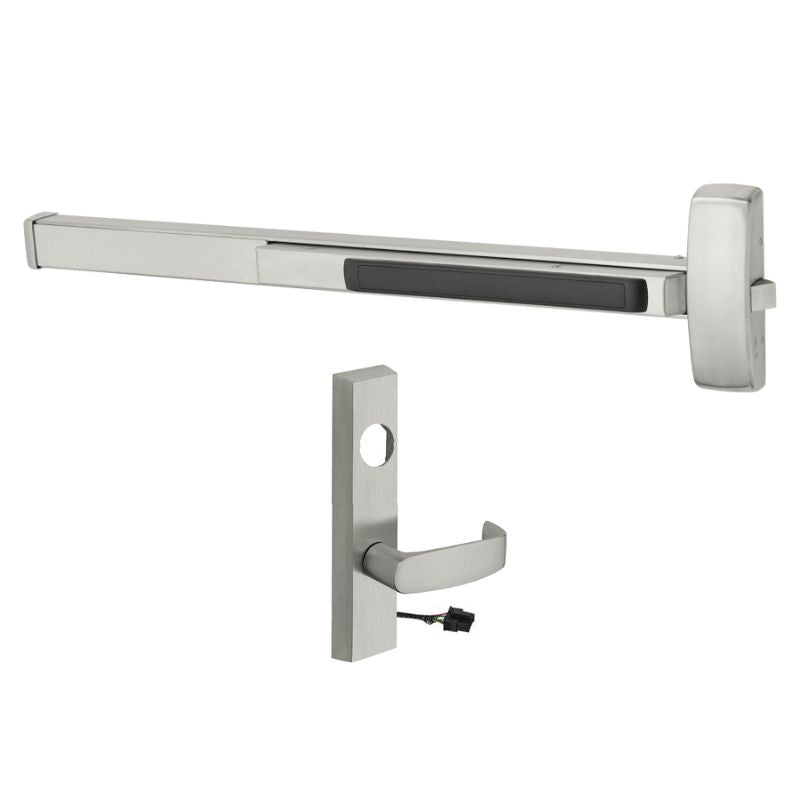

Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device, 12V Fail Secure, L-Lever, Power off Unlocks Lever Key retracts Latch, 33-36 Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 12-8876-F-ETL-12V Fire Rated Rim Exit Device is designed for use on 33-36 inch doors and features a 12V Fail Secure mechanism and L-Lever. With power off, the lever unlocks and the key retracts the latch, providing a Grade 1 level of security. This device does not include a cylinder or dogging option.

76 Electrified ET Trim - Fail Secure
776-8-ETL-12V-LC Electrified Lever Trim, ETL Trim, 12V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder

8800 Series Rim Exit Devices

The 8800 series is designed for standard-width stile applications on wood and metal doors.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

• Single-point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed
