Sargent 12-8815J Fire Rated Rim Exit Device, Exit Only, Passage Function, 37"-42" Door Width, No Dogging

  • SKU: 128815JUS32D

Sargent 12-8815J Fire Rated Rim Exit Device, Exit Only, Passage Function, 37"-42" Door Width, No Dogging

  • SKU: 128815JUS32D
Sale priceDhs. 4,411.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 12-8815J Fire Rated Rim Exit ...
Quantity
+
Sale priceFrom Dhs. 4,411.00
Sargent 715-8-ETL Exit Device Trim, P...
Quantity
+
Sale priceDhs. 1,811.00
Sargent M56A-E Electric Latch Retract...
Quantity
+
Sale priceDhs. 2,059.00
Total

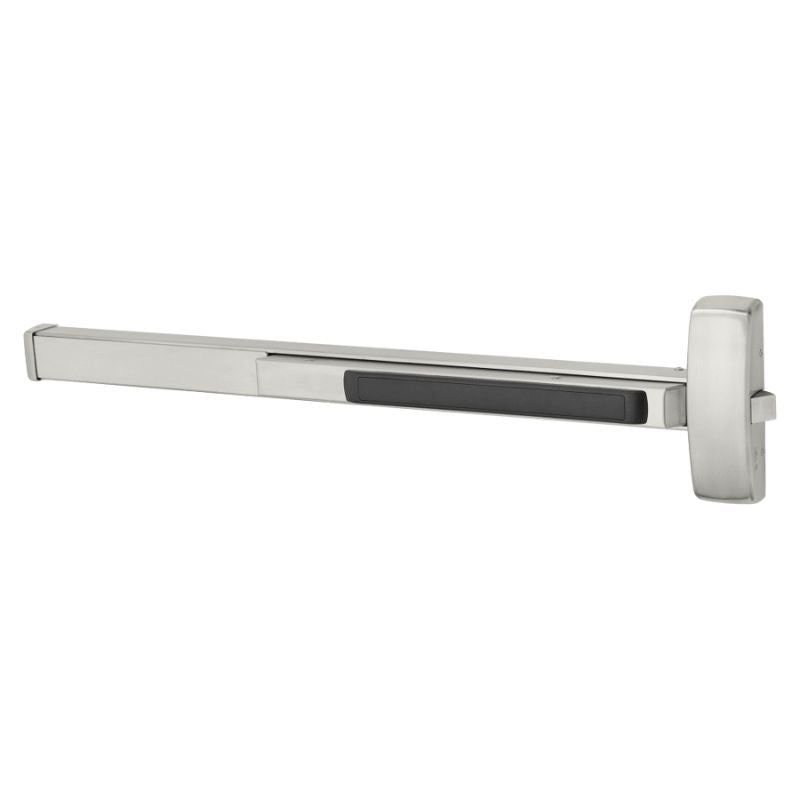

Sargent 12-8815J Fire Rated Rim Exit Device, Exit Only, Passage Function Only, Less Trim, 37"-42" Door Width, No Dogging, Grade 1, Reversible

The Sargent 12-8815J Fire Rated Rim Exit Device is designed for use on doors with a width of 37"-42". It features an exit-only design and a passage function, with no option for dogging. This grade 1 device is reversible and does not require additional trim.

The 8800 Series is tailored for standard width stile applications on both wood and metal doors. This reversible rim exit device is renowned for setting industry benchmarks in durability and reliability. It forms an integral part of Sargent’s comprehensive range of exit devices, offering robust performance and trusted security solutions.

  • Single point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Manufacturer Sargent
SKU 12-8815J
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated Yes
Burglar Rated No
ADA Compliance No


Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Passage
Device Length 42"
Hand Non-Handed
Dogging Options Hex Key Dogging
Includes Trim No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 37" to 42"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices

Panic Handing Chart
