Sargent 12-8810-E Rim Exit Device, Fire Rated, Exit Only, Field Reversible, 24"-32" Bar

  • SKU: 128810EUS32D
Sargent 12-8810-E-US32D Exit Device
Sargent 12-8810-E-US32D Exit Device
Sargent 12-8810-E-US10B Exit Device
Sargent 12-8810-E-US3 Exit Device
All SARGENT Products

Sargent 12-8810-E Rim Exit Device, Fire Rated, Exit Only, Field Reversible, 24"-32" Bar

  • SKU: 128810EUS32D
  • ✓
    Available (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
Dhs. 4,327.00/ea
Finish: US32D Satin Stainless Steel (630)
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 12-8810-E Rim Exit Device, Fi...
Quantity
–
+
From Dhs. 4,327.00
Sargent 710-ETL Exit Device, Dummy Le...
Quantity
–
+
Dhs. 1,987.00
Total

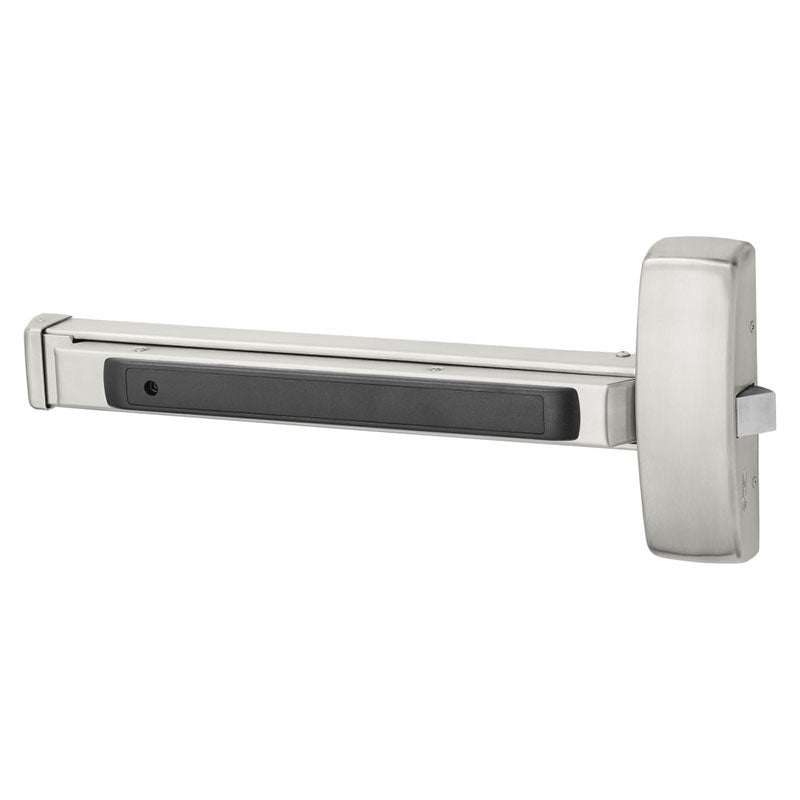

Sargent 12-8810-E is a Rim Exit Device, is Fire Rated, is Exit Only, is Field Reversible, has a 24"-32" Bar, is Grade 1. The Sargent 12-8810-F Exit Device is Fire Rated, exit only with no outside trim. The 8810 exit device, also known as a panic bar, is applied to the surface of the door, making installation simple. Trim is sold separately.

This Sargent panic device is perfect for wood or metal doors 1-3/4" thick with a 4-1/2" minimum stile. Its excellent design ensures quiet operation and solid security.

It is ideal for use in all institutions, office spaces, and healthcare facilities. The single-point rim latching device is made for both single-door and double-door applications.



Manufacturer Sargent
SKU 12-8810E
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only
Device Length 32"
Hand Non-Handed
Dogging Options Less Dogging
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 24" to 32"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
