Description

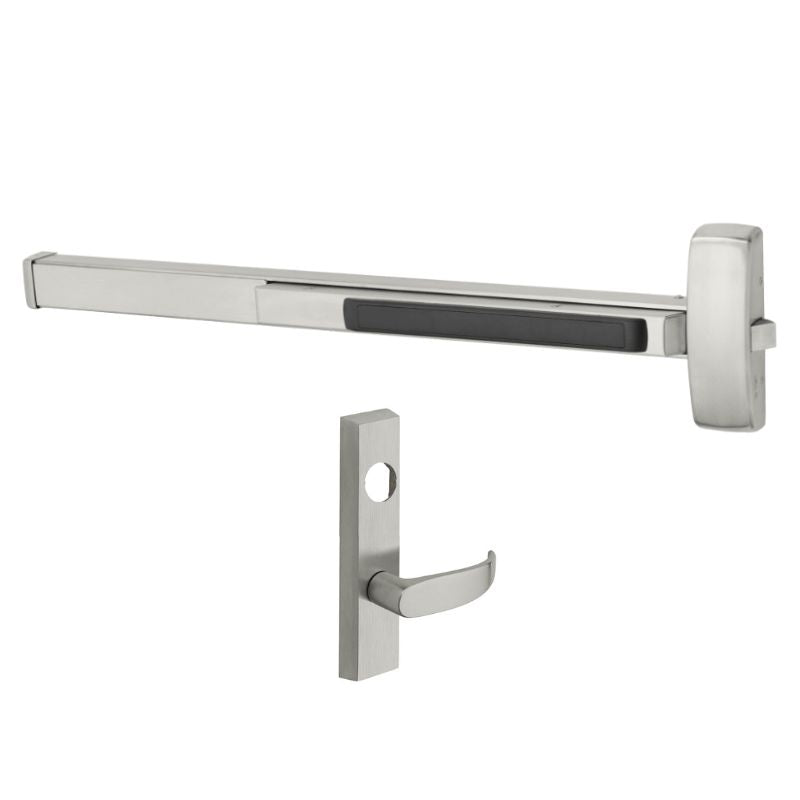

Sargent 12-8804-G-ETP-US32D Fire Rated Rim Exit Device, Night Latch Function, 43-48" Dr Width, ET Control, P Lever, Less Dogging, Less Cylinder, Satin Stainless Steel
This is ideal for use in all institutions, office spaces, and healthcare facilities. Quality-made Grade 1 commercial door hardware.
Designed for standard width stile applications on wood and metal doors, this single point rim latching device is made for both single door and double door applications. This device operates quietly and provides solid security.
Sargent 8800 Series Exit Devices cylinder options are available to accept an "SFIC'' Best, Arrow, or Falcon interchangeable core. Call or email for cores or keying options. We can key to your specifications.
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Night Latch |
| Device Length | 48" |
| Hand | Handed |
| Dogging Options | Less Dogging |
| Includes Trim | Yes ETP |
| Trim Type | Cylinder Only |
| Includes Cylinder(s) | Optional |
| Cylinder Type | Rim |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 43"-48" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Rim Exit Devices |
Document Center
Handing Chart
