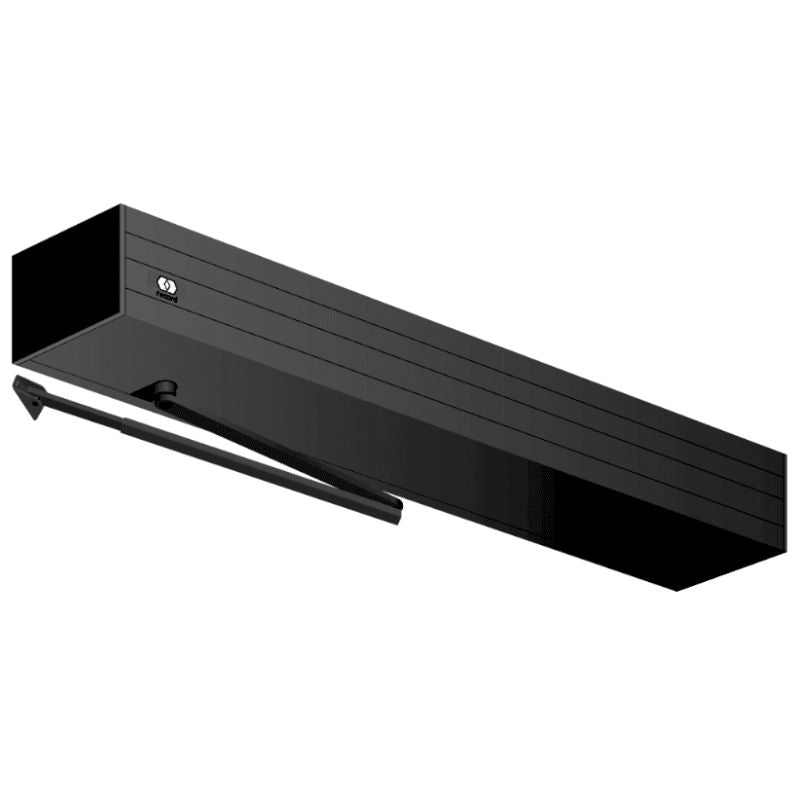

Record SS8211B2SNN-48 Heavy Duty Low Energy Auto Door Operator, 51 Inch Header, Single Door Operator, SS8200 Series SimpleSwing, Standard Arm Mounted Push Or Pull, Adjustable Arm Up To 12 Inch Push Reveal, 6 Inch Pull Reveal, Field Reversible, Max Door Weight 400 LBs, Black Aluminum
The Record SS8211B2SNN-48 is a heavy duty, low energy auto door operator with a 51 inch header. It features the SS8200 Series SimpleSwing and a standard arm mounted push or pull design. The adjustable arm can accommodate up to 12 inches for push reveal or 6 inches for pull reveal. This non-handed door operator has a maximum weight capacity of 400 LBs and is constructed with Black aluminum.
This operator is designed for single doors. For paired doors, please order one operator per door.
SimpleSwing Heavy Duty Door Operators
The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.
With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.
- Header width dimensions: 4.5" x 5"
- Motor: 1/4hp
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
- ANSI/BHMA 156.19
- UL325/UL228
- Operating Conditions: -40°F and +140°F
- This operator is designed for single doors. For paired doors, please order one operator per door.
Product Specs
| Manufacturer | record-usa |
| SKU | SS8211B2SNN 48 |
| Installation | Commercial |
| Origin | Switzerland |
| Unit of Measure | EACH |
| UL Listing Type | UL325 |
| ANSI Number | A156.19 |
| BAA Qualified | No |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specs
| Type | Surface |
| Technology | Electromechanical |
| Mounting Location | Push or Pull Side |
| Mounting Style | Regular |
| Hold Open | Yes |
| Hold Open Type | Electric |
| Arm Type | Double Lever Arm, Regular |
| Hand | Field Reversible |
| Degree Swing | 120 Deg. |
| Stop | Positive Stop |
| Door Size | 48" |
| Door Weight | 254 lbs. Push, 198 lbs. Pull |
| Reveal Size | 12" |
| Voltage | 120V |
| Aux Power | 24V AC/DC @ 0.5A |
| Physically Handicapped | Yes |
| Product Type | Door Operators |
