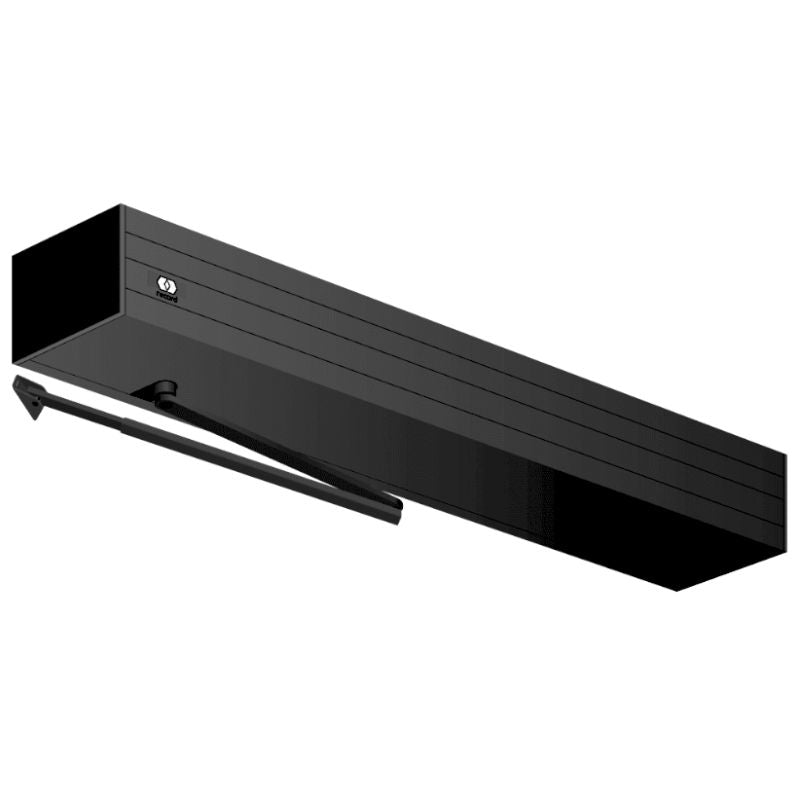

Record SS8211B2SNN-42 Heavy Duty Low Energy Auto Door Operator, 45 Inch Header, Single Door Operator, SS8200 Series SimpleSwing, Standard Arm Mounted Push Or Pull, Adjustable Arm Up To 12 Inch Push Reveal, 6 Inch Pull Reveal, Non Handed, Max Door Weight 400 LBs, Black Aluminum

The Record SS8211B2SNN-42 is a heavy duty, low energy auto door operator with a 45 inch header. It features the SS8200 Series SimpleSwing and a standard arm mounted push or pull design. The adjustable arm can accommodate up to 12 inches for push reveal or 6 inches for pull reveal. This non-handed door operator has a maximum weight capacity of 400 LBs and is constructed with Black aluminum.

SimpleSwing Heavy Duty Door Operators

The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.

• Header width dimensions: 4.5" x 5"
• Motor: 1/4hp
• Opening angle with track arm: 90 degrees
• Opening angle with standard arm: 120 degrees
• Electrical requirements: 120 VAC @ 15amps 60hz
• Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
• ANSI/BHMA 156.19
• UL325/UL228
• Operating Conditions:  -40°F and +140°F
• This operator is designed for single doors. For paired doors, please order one operator per door.
