Description

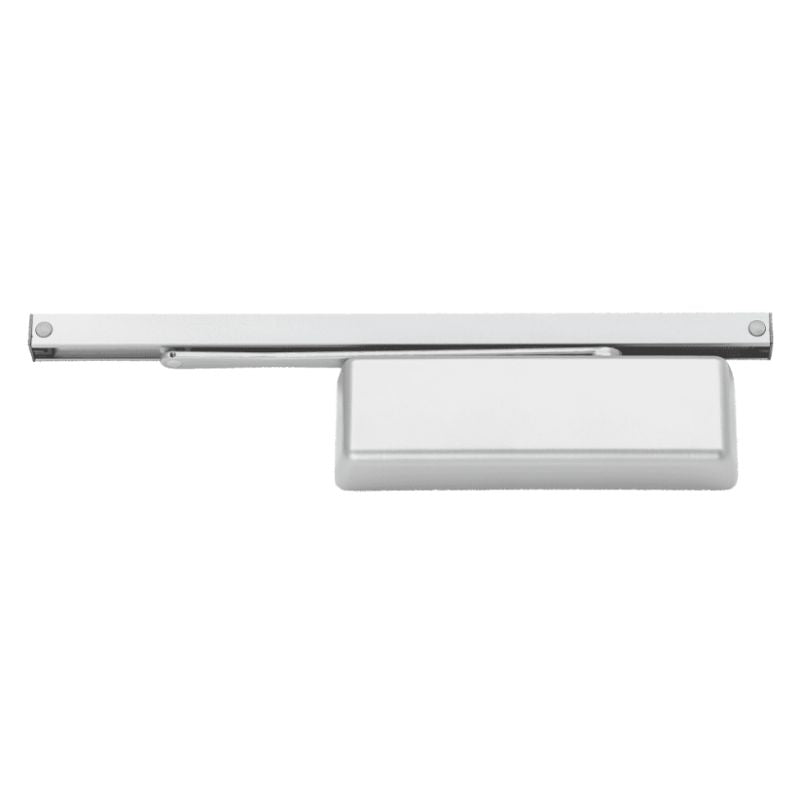

LCN 4111-EDA-689 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, 180 Deg. Swing, Size 1 to 5, Full Plastic Cover, Grade 1, Aluminum Painted Finish
LCN 4111T-STD-689 Surface Door Closer features an Extra Duty Arm and Push Side Parallel Arm Mounting for 180 degree swing. This Grade 1 closer comes in a Size 1 to 5 and is finished with Aluminum Paint for added durability. The Full Plastic Cover provides additional protection and makes it suitable for a variety of applications.
4110T Series Surface Mounted Closers
LCN’s best performing heavy duty track closer.
Best used for interior doors in institutional and other high traffic applications.
- Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
- Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal
- Fluid: All Weather Fluid
- Handing: Handed
- Size: Adjustable Spring Size 1-5, or Sized 6. Includes Patented Green Dial
- Warranty 30 years
Product Specs
| Manufacturer | LCN |
| SKU | 4111T-STD 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 30 Years |
| Finish | |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Slide Track |
| Hold Open | No |
| Hand | LH or RH |
| Degree Swing | 110 Deg. |
| Cover | Full Plastic |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
