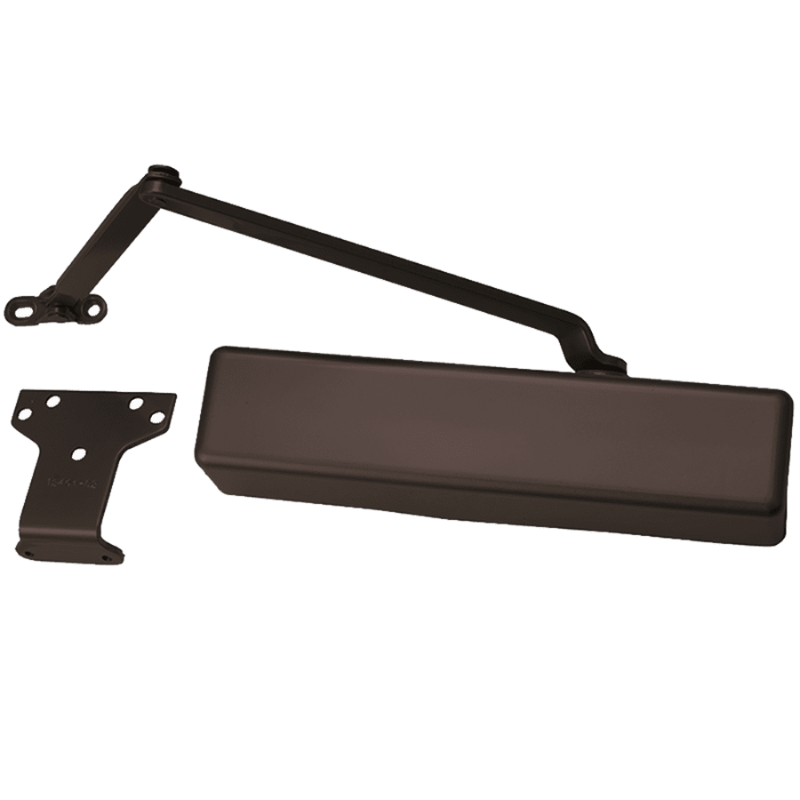

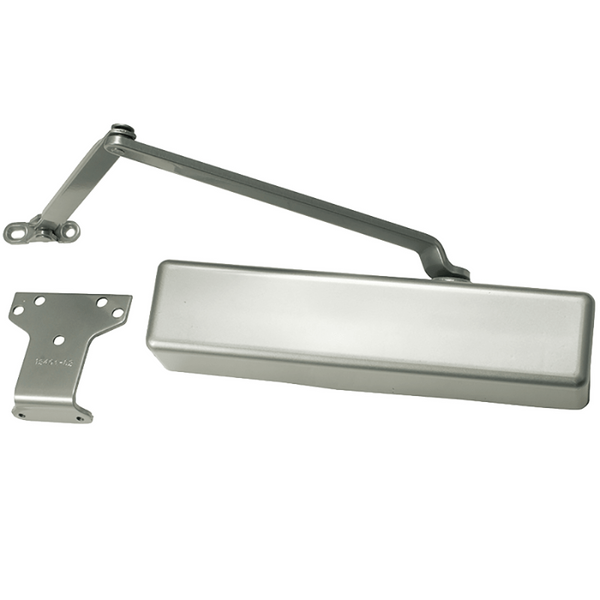

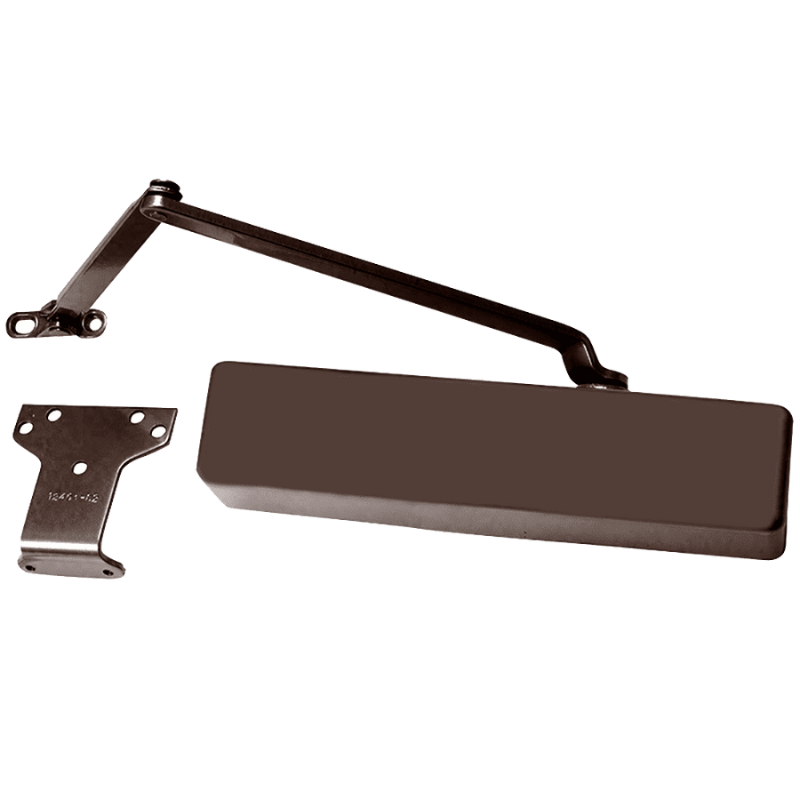

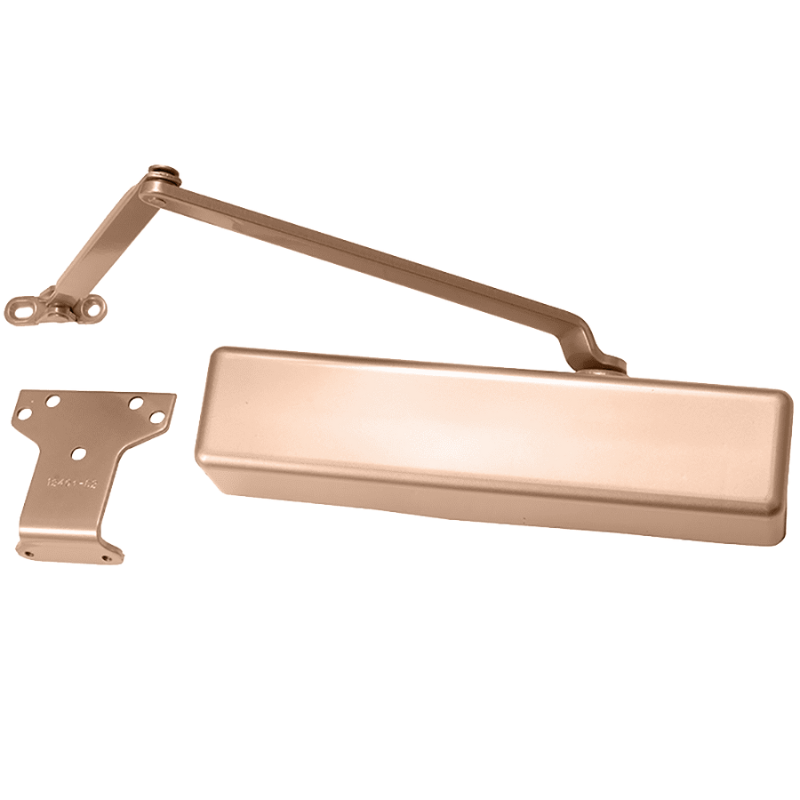

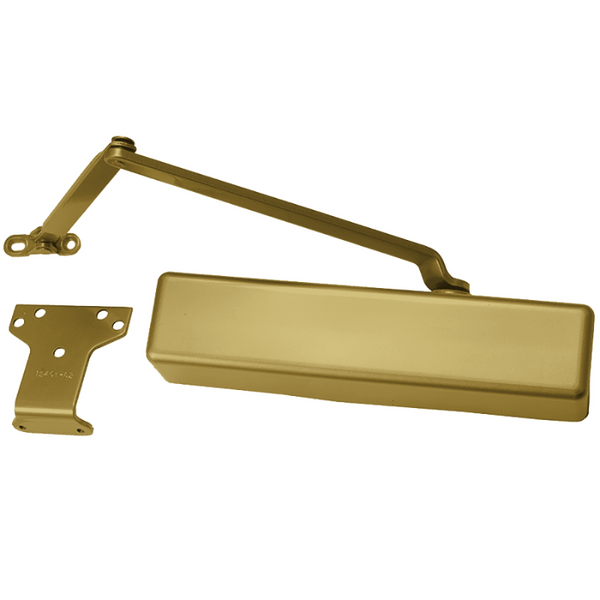

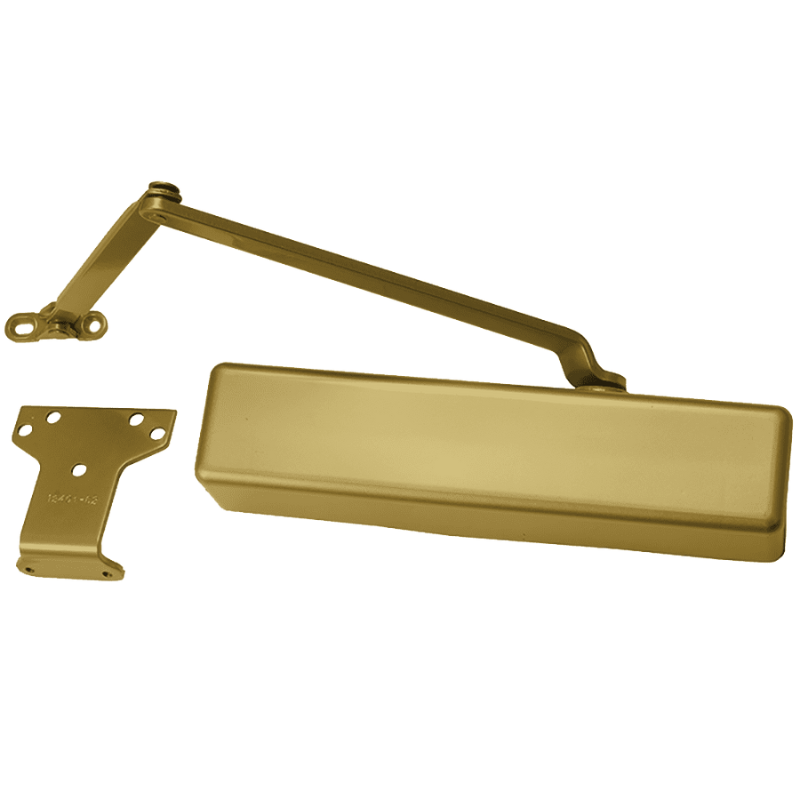

LCN 1461-RW/PA-CYLDEL Surface Door Closer, Regular Arm with Parallel Arm Shoe, Delay Action Cylinder, Slim Plastic Cover, 180 Deg. Swing, Non Handed, Grade 1
The LCN 1461-RW/PA-CYDEL Surface Door Closer features a Regular Arm with a Parallel Arm Shoe, Delay Action Cylinder, and Slim Plastic Cover, making it a Grade 1 product for optimal functionality and durability.
Features:
Standard 1460 series closer shipped with regular arm, a slimline plastic cover, and self-reaming and tapping screws
Cover option; Standard (Slimline)
Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"
Closer mounts hinge side, top jamb, and parallel arm on either right or left swinging doors
Specifications
Materials:
High-strength cast iron cylinder One-piece forged steel piston Heat-treated pinion All-weather fluid eliminates seasonal adjustments High efficiency, full complement, low friction bearings Tamper-resistant regulating screws Full rack and pinion hydraulic action Quiet, low friction track and roller combination for all single lever arm closers
