Description

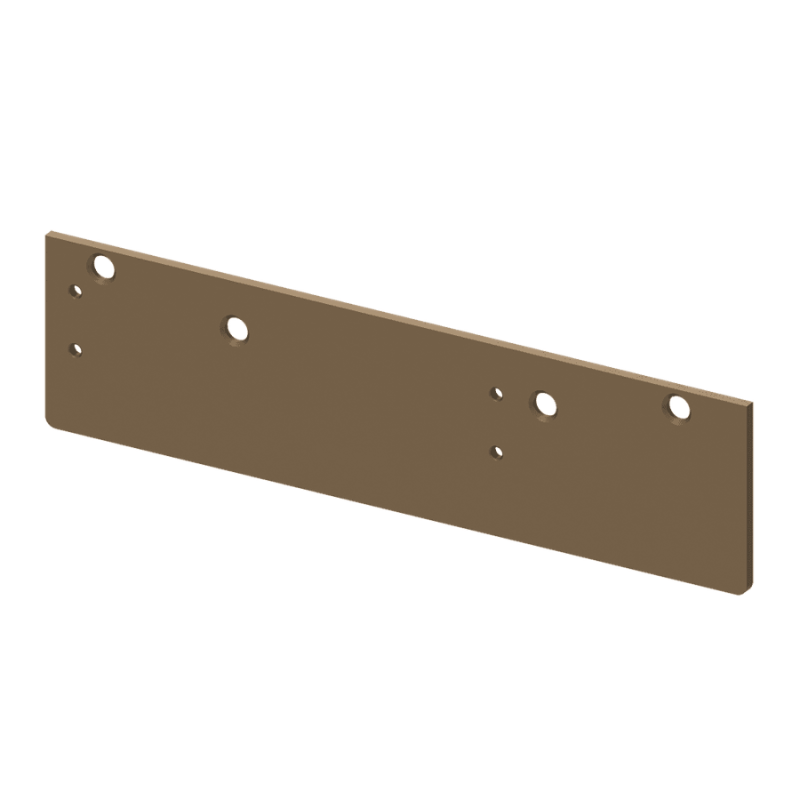

LCN 1460-18FC Drop Plate for 1460 Series, For Use With Full Cover
The LCN 1460-18FC Drop Plate is a heavy-duty mounting accessory designed specifically for hinge side (pull side) installations of LCN 1460 Series surface-mounted door closers with a full cover. This drop plate is required when the door’s top rail measures less than 2-1/2" (64 mm) and accommodates openings with a minimum 1-1/2" (38 mm) top rail or 1-1/4" (32 mm) head frame. Constructed from durable steel to support ANSI/BHMA A156.4 Grade 1 performance when used with the 1460 closer, the 1460-18FC provides secure reinforcement for commercial and institutional applications. Ideal for schools, hospitals, government buildings, and other high-traffic facilities, this plate ensures proper closer mounting while maintaining professional, code-compliant installation standards.
Features
- Required for hinge side mount where top rail is less than 2 1⁄2" (64 mm)
- Requires minimum 1 1⁄2" (38 mm) minimum top rail or 1 1⁄4" (32 mm) head frame
- For use with full cover
- Will not work in top jamb application
- Heavy-gauge steel construction for added mounting reinforcement
- Designed specifically for use with LCN 1460 Series surface-mounted closers
Product Specs
| Manufacturer | LCN |
| SKU | 1460-18FC |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Steel |
| BAA Qualified | Yes |
Technical Specs
| Product Type | Door Closer Mounting Plates |
| Grade | ANSI/BHMA A156.4, Grade 1 |
| Durability | Designed for "Rugged High Traffic" and institutional applications. |
| Top Rail Requirements | Required for hinge side mount where top rail is less than 2 1⁄2"(64 mm), Requires minimum 1 1⁄2" minimum top rail or 1 1⁄4" (32 mm) head frame. |
