Description

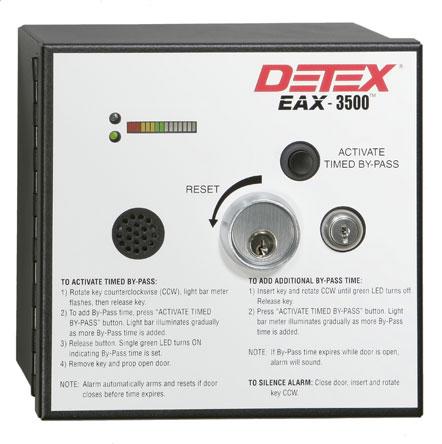

Detex EAX-3500 EAX-3500, Surface Mount Only, 24VAC/DC Hardwired Timed Bypass Exit Alarm with Rechargeable Battery, EA-561 Warning Sign Included,
The Detex EAX-3500 is designed for applications requiring a hard-wired, timed-bypass alarm with rechargeable backup battery. The 100dB alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but reminds manager to close and secure the door.Specifications Detex EAX-3500 Timed Bypass Exit Alarm & Rechargeable Battery, Life Safety Security Door Hardware
| Dimensions: | 8.13" W x 8.13" H x 4" D |
| Sound Pressure: | 100dB alarm |
| Alarm Module Current Draw: | Amp Draw - .083 Amps @ 24 VDC (Alarmed) - .110 Amps @ 24 VDC (Door Prop) |
| Warranty: | 3 Year Limited Manufacturer's Warranty |
Detex EAX-3500 Timed Bypass Exit Alarm & Rechargeable Battery Certifications:
| Fire Rated: | UL Listed |
| ANSI/BHMA: | Certified A156.29 |
