All CORBIN RUSSWIN Products

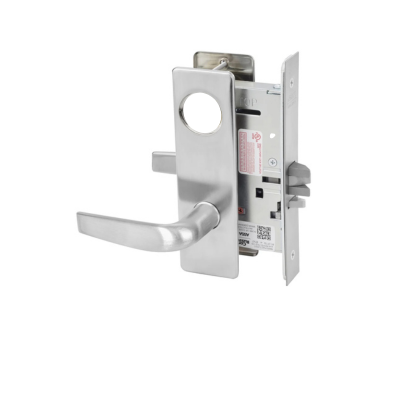

Corbin Russwin ML2055-CSM Classroom Mortise Lock, Citation Lever, M Escutcheon

  • SKU: ML2055CSM626

Corbin Russwin ML2055-CSM Classroom Mortise Lock, Citation Lever, M Escutcheon

  • SKU: ML2055CSM626
Sale priceDhs. 2,552.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D-626 Satin Chrome

Corbin Russwin ML2055-CSM Mortise Lever Lockset - Classroom Function, Citation(CS) Lever with M Escutcheon

  • CS Lever, M Escutcheon
  • Entrance or Office Function
  • Latchbolt by key when outside grip locked by toggle action stop.
  • Latchbolt by grip either side, unless outside grip is locked by toggle-action stop.
  • Auxiliary latch deadlocks latchbolt.
  • Inside grip always free.

Corbin Russwin ML2000 Series Mortise Locks

Expertly engineered for high-traffic commercial, institutional, industrial, and government use, the Corbin Russwin Mortise Trim features a Grade 1 mortise lock with a Quick Reversible latchbolt and 1" stainless steel deadbolt. Its heavy-gauge steel construction and 10-year warranty guarantee reliable and versatile use in offices, schools, hospitals, hotels, and other high-use settings.

Key Advantages

  • Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
  • Security trims provide a vandal-resistant barrier
  • Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
  • Provides life safety and security in a single door prep, saving the additional cost of a deadlock
  • Thru-bolted trim designs for proper alignment and increased security Multi-function lockbody
Vendor
Manufacturer Corbin Russwin
SKU ML2055 CSM
Grade Grade 1
Installation
Origin USA
Unit of Measure Each
Application Complete Lock
Base Material Bronze
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes

Function
55-Classroom
ANSI Function
F05 - Classroom
Lever/Knob Design
CS - Citation
Rose/Escutcheon Design
M - Escutcheon
Cylinder Type
Conventional Cylinder
Num Pins 6
Std. Keyway L4
Keying 0 Bitted
Key(s) Blank
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latchbolt
Std. Strike Number 236L72018
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock


Cylinder Mortise Handing Chart
