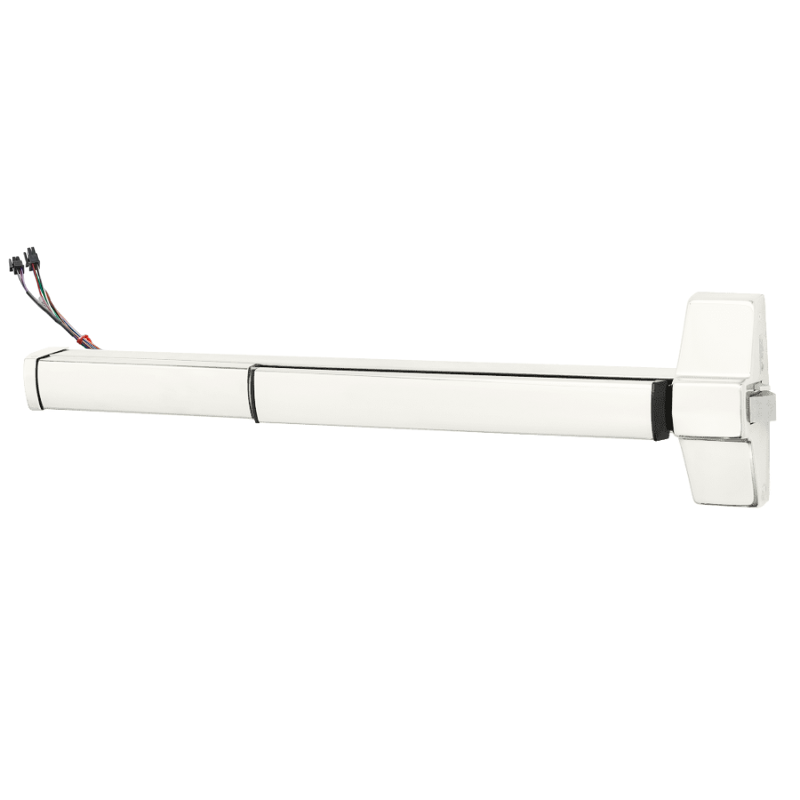

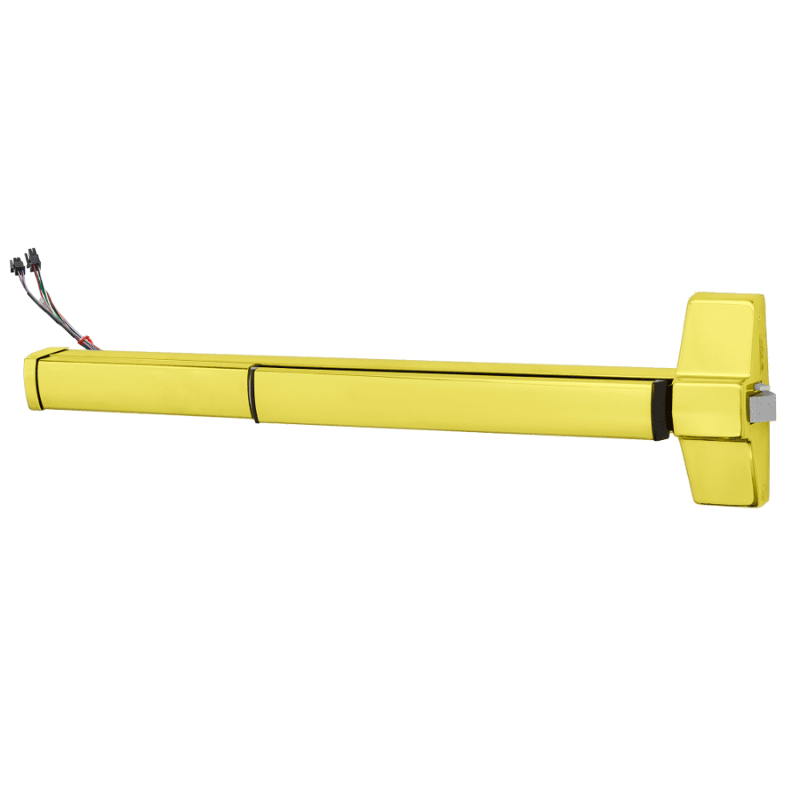

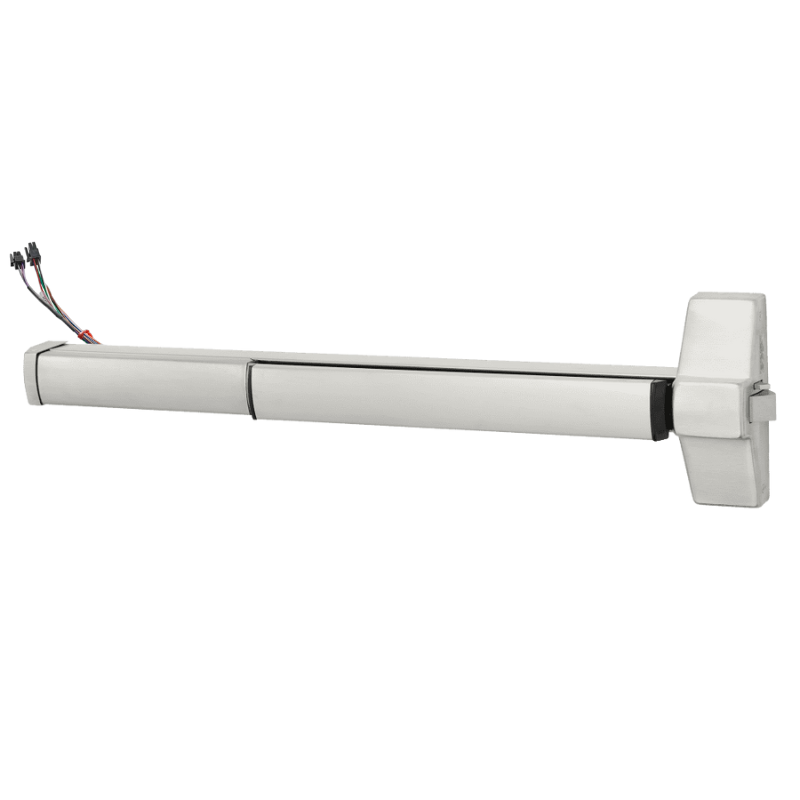

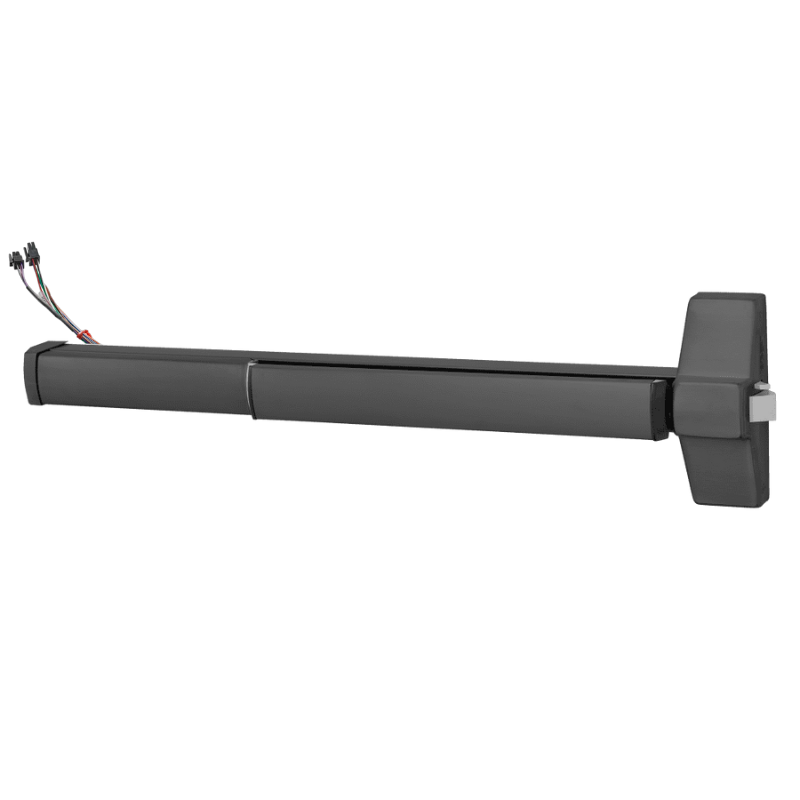

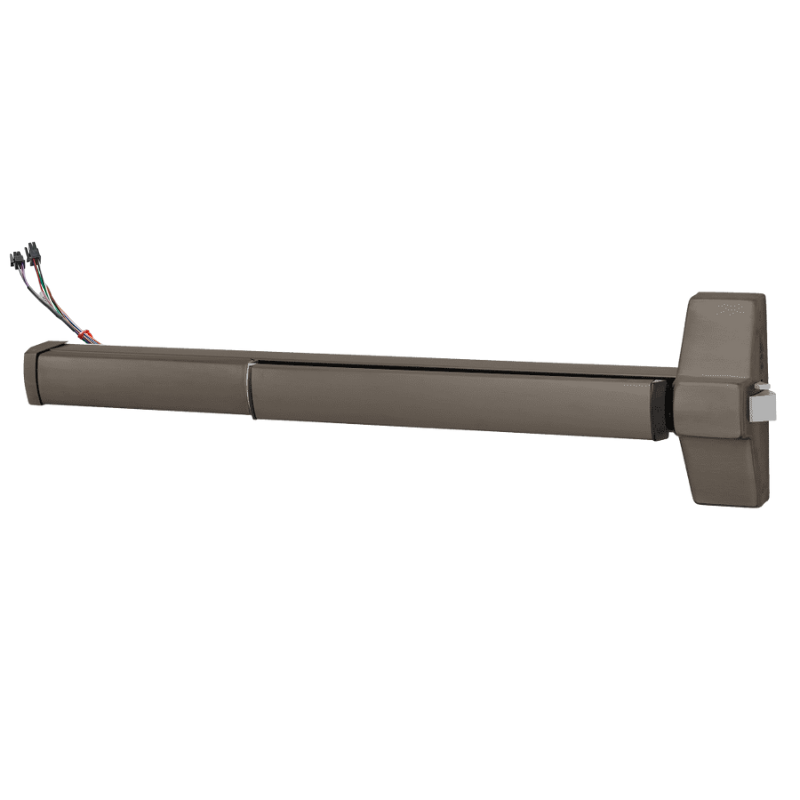

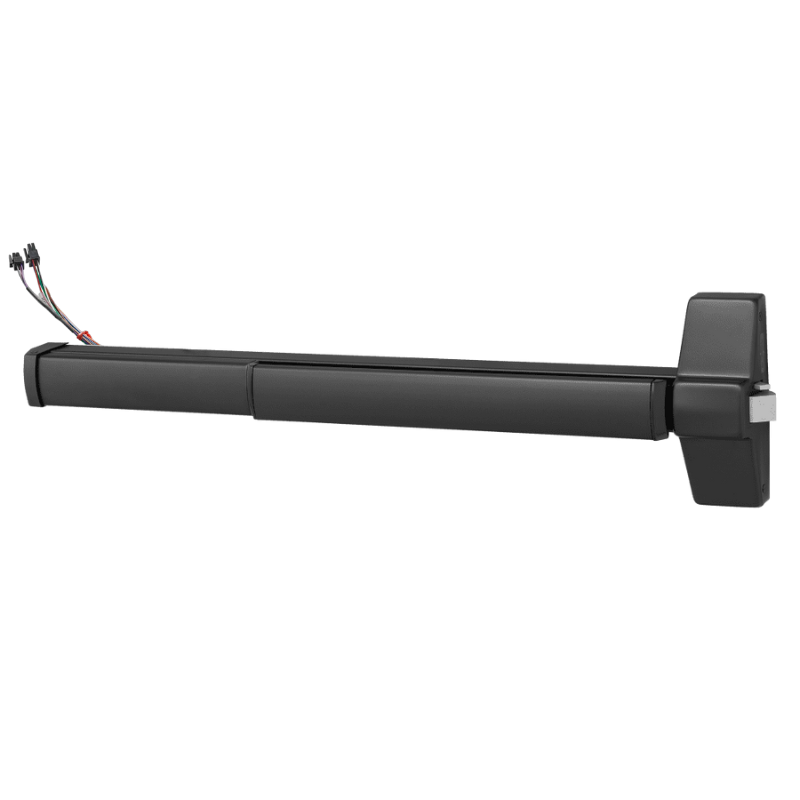

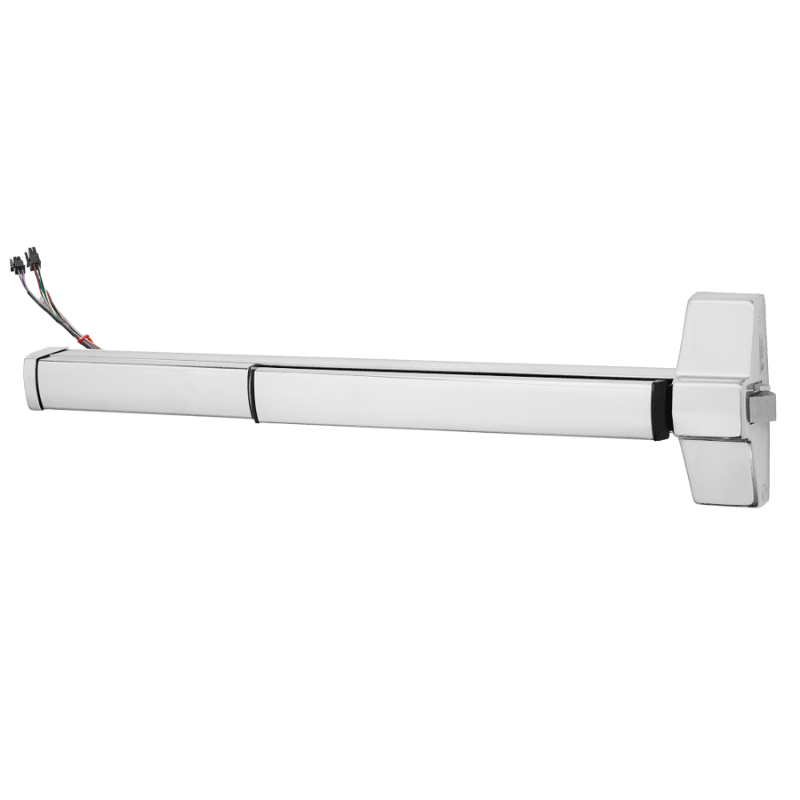

Corbin Russwin ED5200A-48-MELR-M91 Fire Rated Rim Exit Device, Motorized Latch Retraction, Bolt Position Monitoring, Exit Only, 36-48" Dr Width, Less Dogging, Grade 1, Non Handed
The Corbin Russwin ED5200A-48-MELR-M91 is a premium Grade 1 fire-rated rim exit device featuring motorized latch retraction and bolt position monitoring capabilities. Designed for 36-48" door widths, this non-handed, exit-only solution includes Less dogging functionality, delivering professional-grade security for commercial applications.
- Heavy Duty – ANSI/BHMA Grade-1 Certified
- Exit Only
- Trim Sold Separately. See Frequently Bought Together above
- Rim Exit Device for doors 36" - 48" in width
-
Electric Latch Retraction - MELR
The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.
-
Bolt Position Monitor M91: SPDT (Single Pole Double Throw) switch that monitors the position of the latchbolt or vertical rods. To order, specify M91.
- Fire Rated
It is among the most durable exit devices on the market, with additional security options.
The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in the rim, mortise, surface vertical rod, and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5-year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
