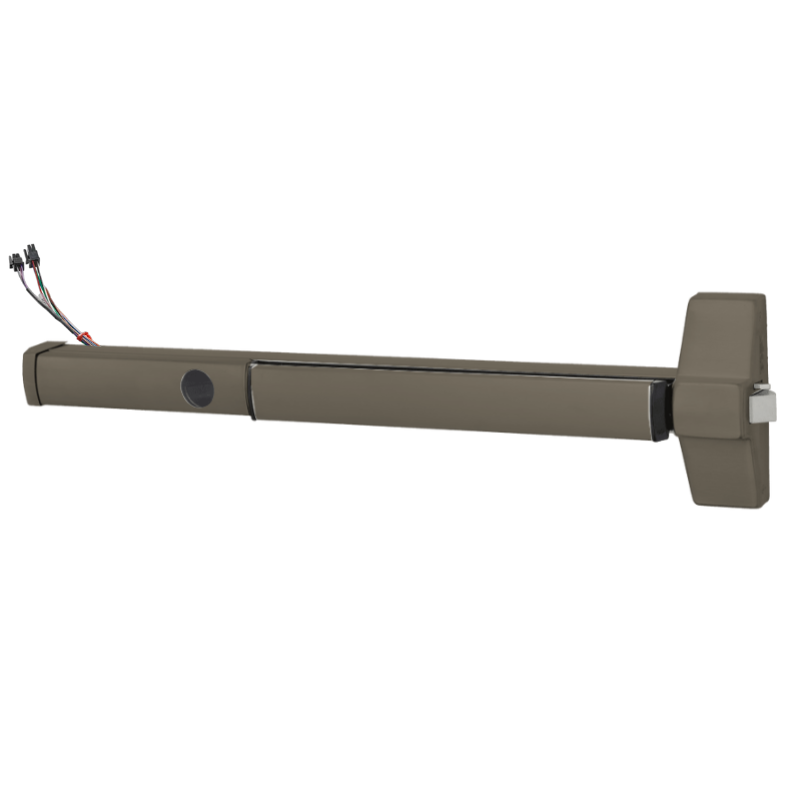

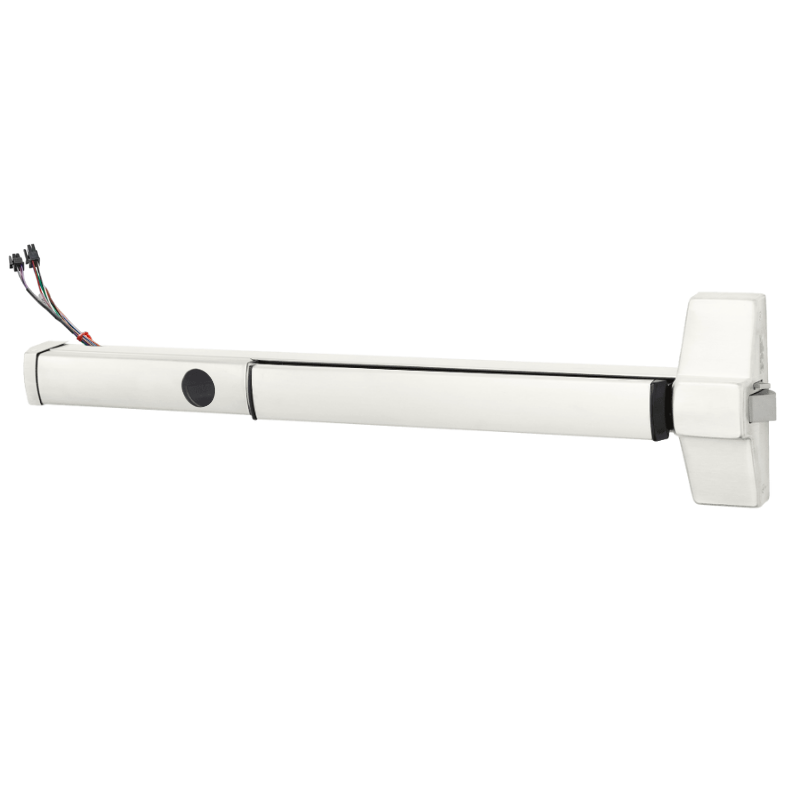

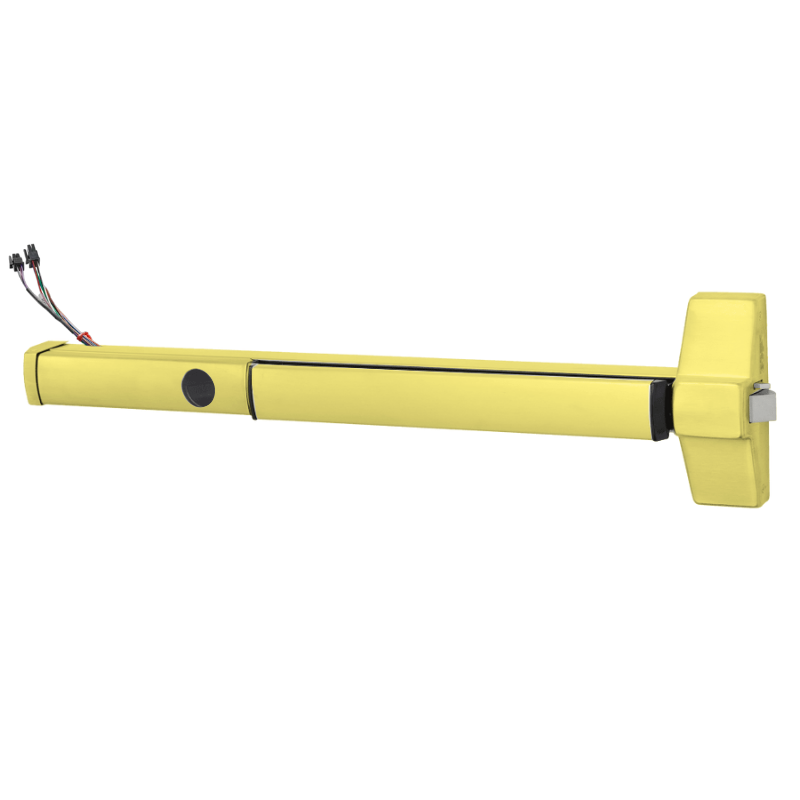

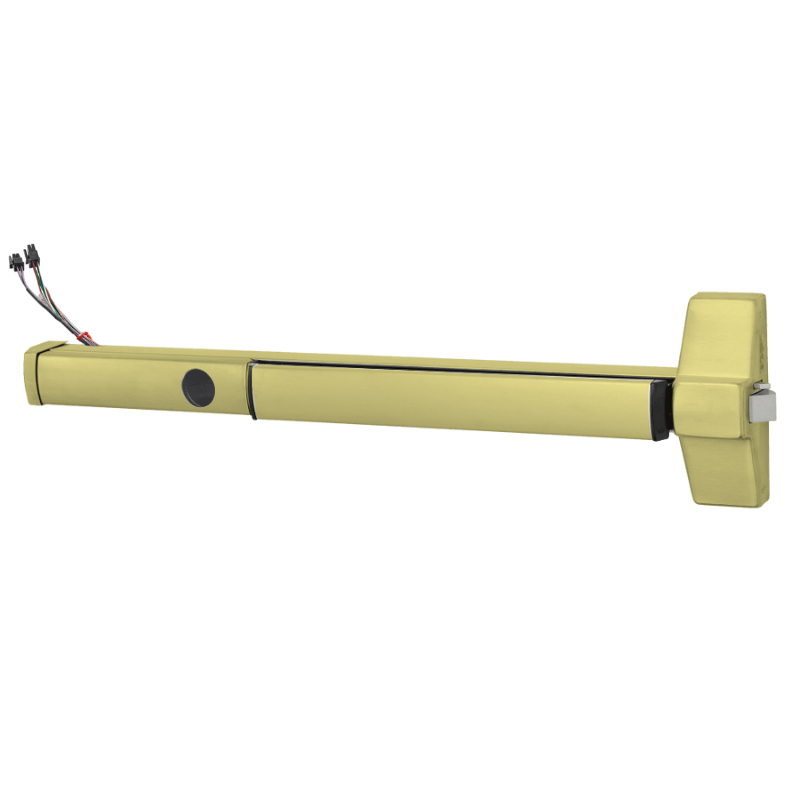

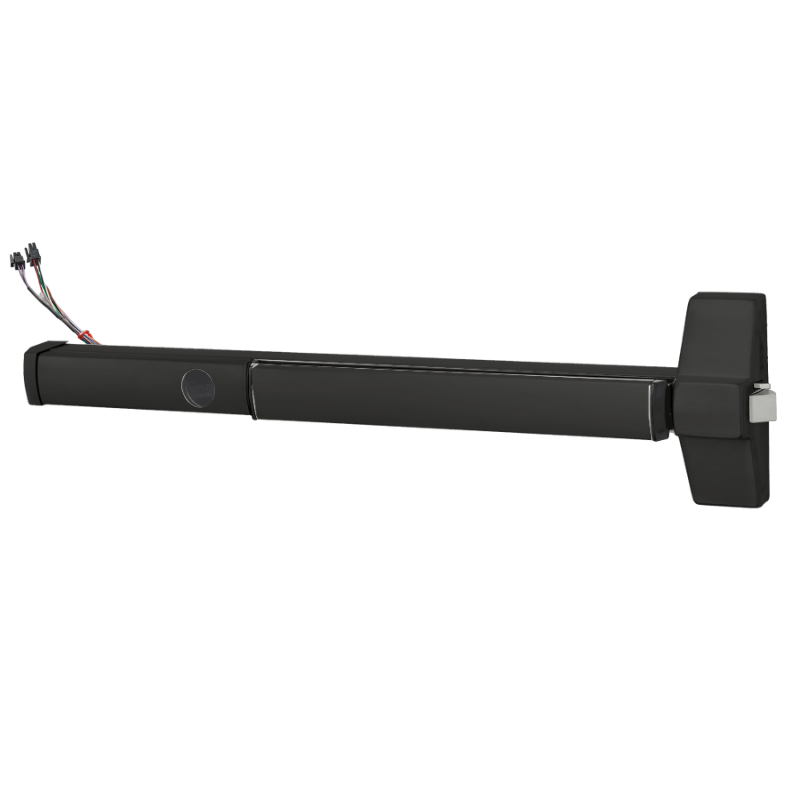

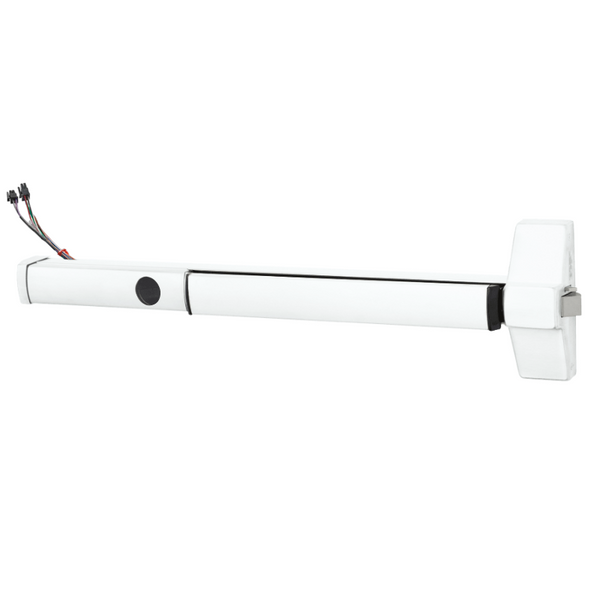

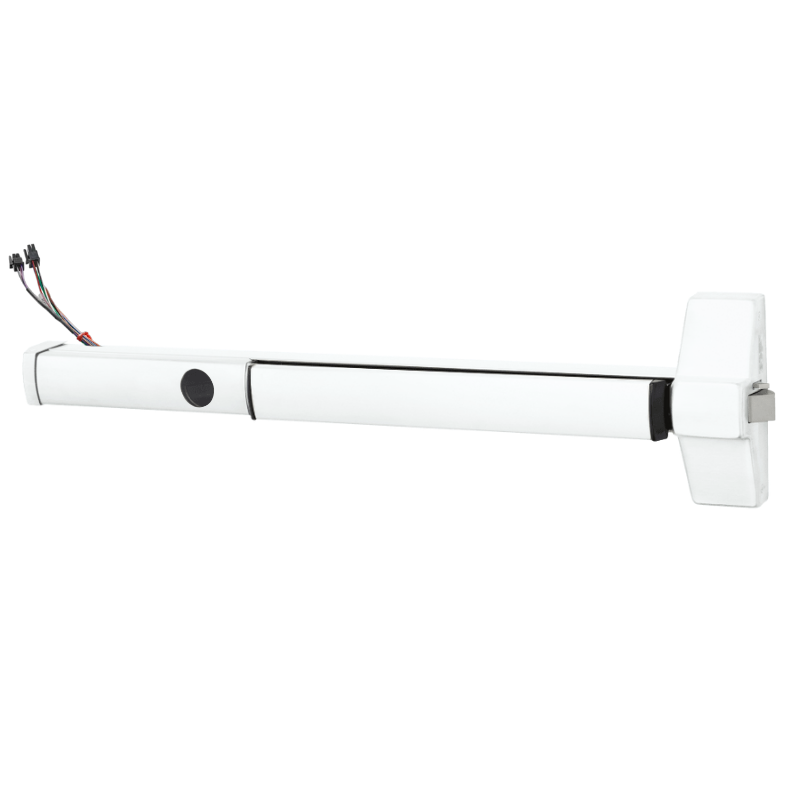

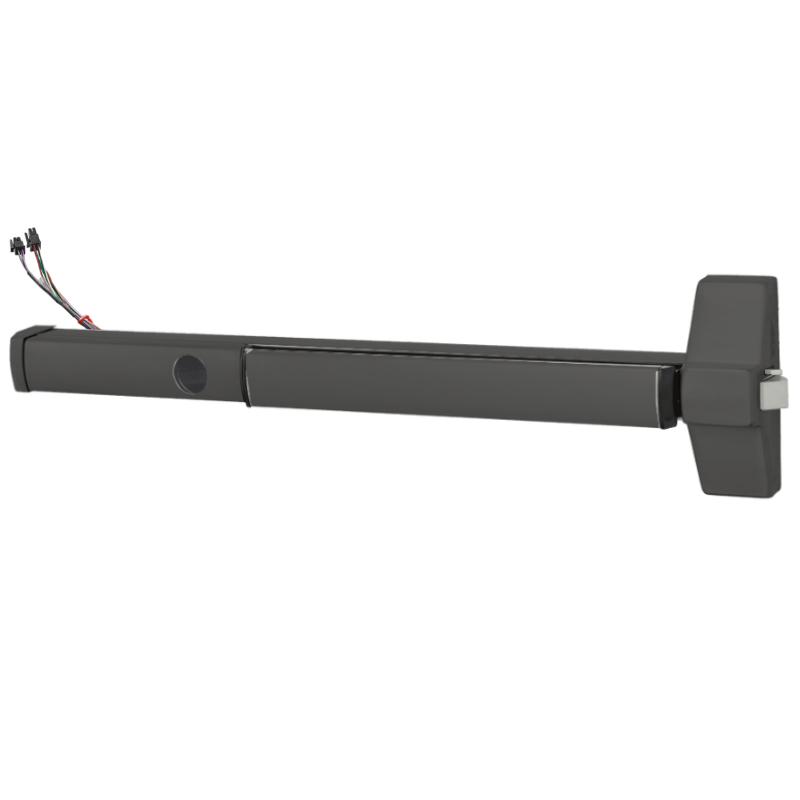

Corbin Russwin ED5200-48-MELR-M52 Rim Exit Device, Motorized Latch Retraction, Exit Only, 36-48" Dr Width, Cylinder Dogging, Less Cylinder, Grade 1, Non Handed
The Corbin Russwin ED5200-48-MELR-M52 Rim Exit Device features motorized latch retraction technology for exit-only applications. Designed for 36-48" door widths with cylinder dogging capability, this Grade 1 non-handed device delivers superior security without requiring a cylinder. Engineered to meet commercial building safety standards while providing reliable performance.
- Heavy Duty – ANSI/BHMA Grade-1 Certified
- Exit Only
- Trim Sold Separately. See Frequently Bought Together above
- Rim Exit Device for doors 36" - 48" in width
-
Electric Latch Retraction - MELR
The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.
- Cylinder dogging; specify M52
It is among the most durable exit devices on the market, with additional security options.
The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in the rim, mortise, surface vertical rod, and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5-year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
