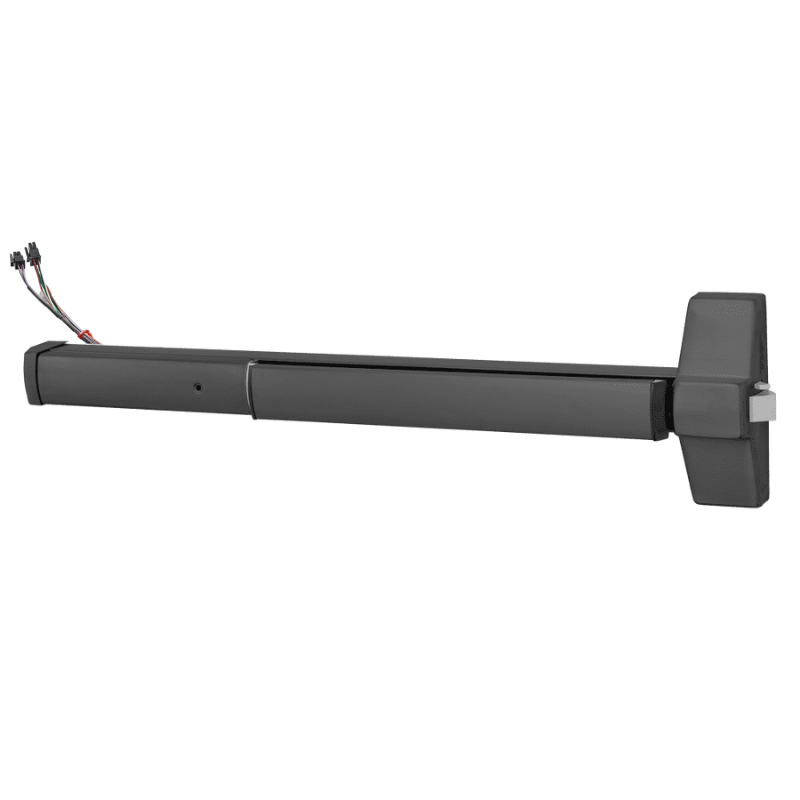

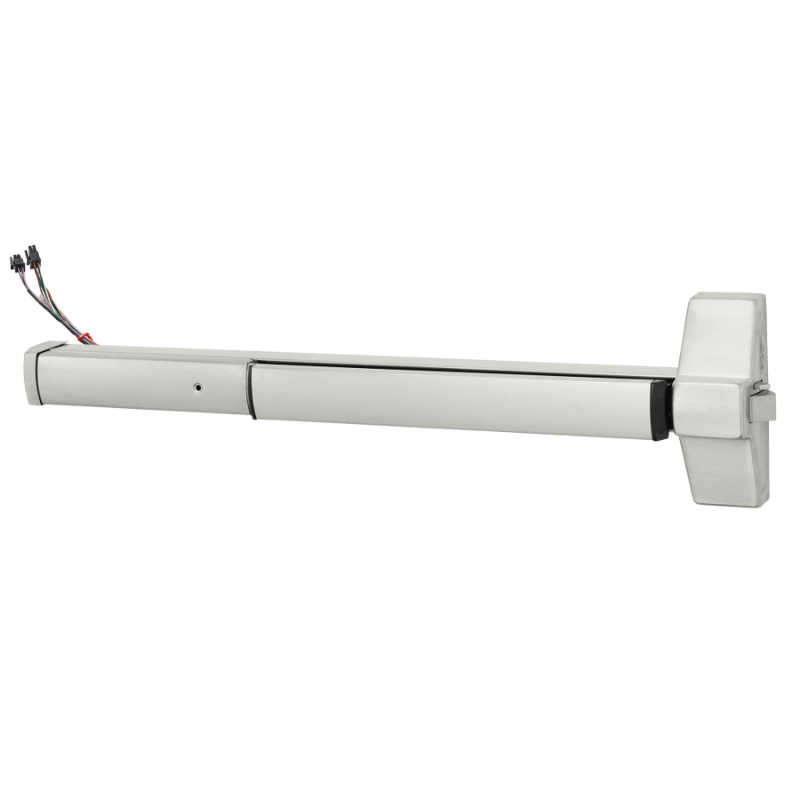

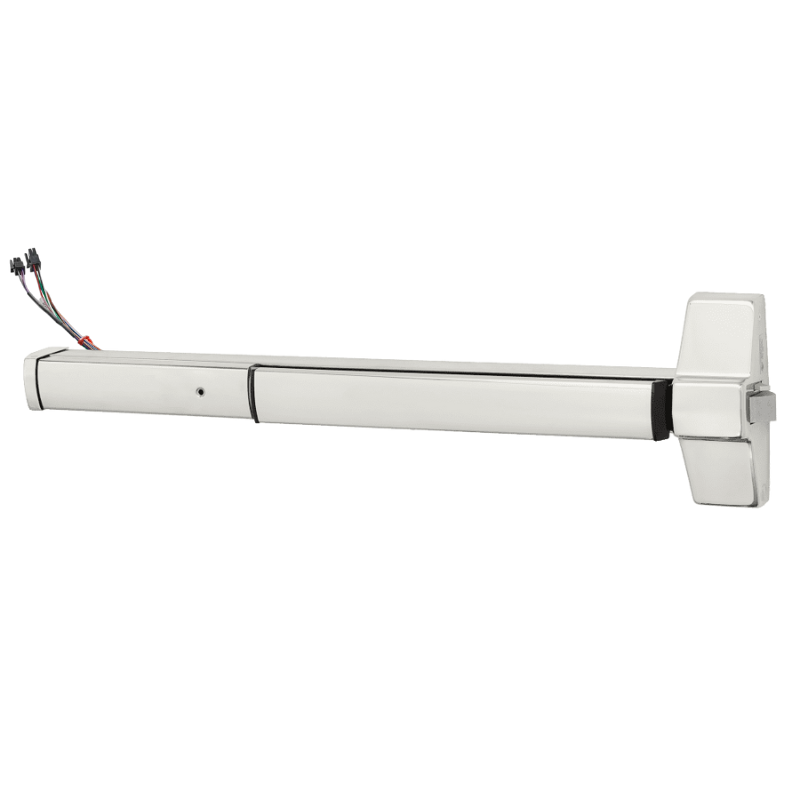

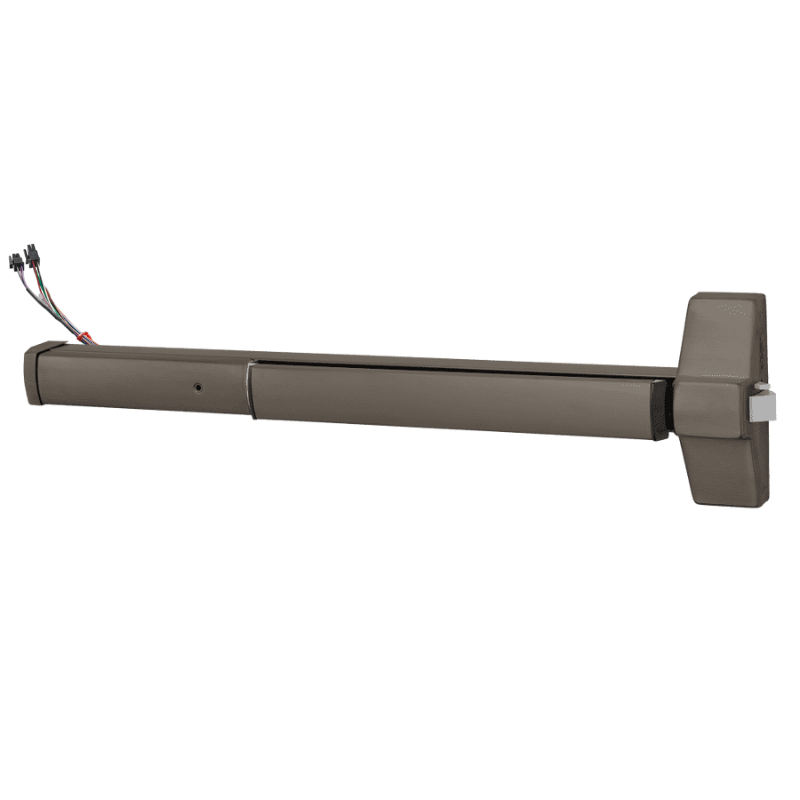

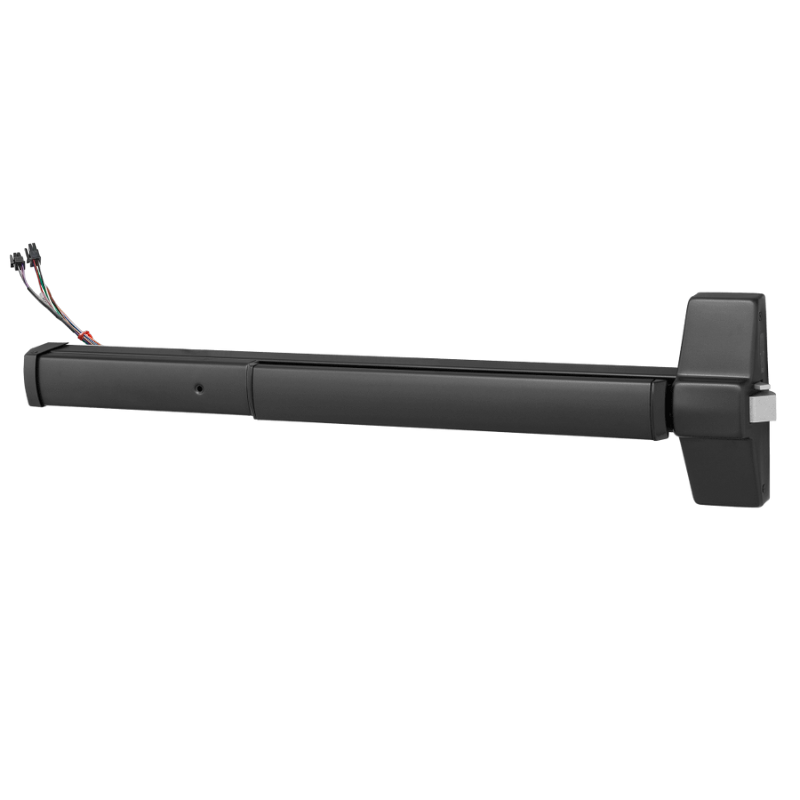

Corbin Russwin ED5200-36-MELR-M92 Rim Exit Device, Motorized Latch Retraction, Request To Exit, Exit Only, 30-36" Dr Width, Hex Key Dogging, Grade 1, Non Handed
The Corbin Russwin ED5200-36-MELR-M92 is a premium rim exit device featuring motorized latch retraction with request-to-exit functionality. Designed for 30-36" door widths, this exit-only device comes with Hex Key dogging capability. Its Grade 1 classification ensures superior durability, while the non-handed design offers versatile installation options for commercial security applications.
- Heavy Duty – ANSI/BHMA Grade-1 Certified
- Exit Only
- Trim Sold Separately. See Frequently Bought Together above
- Rim Exit Device for doors 30" - 36" in width
-
Electric Latch Retraction - MELR
The Motorized Electric Latch Retraction (MELR) exit device provides remote-controlled latch retraction that delivers quiet, smooth operation for convenient, hassle-free egress. Easily installed in new applications and available as retrofit rail kit assemblies for field updates, the MELR features maintenance-free design with few
moving parts using 86% less power consumption during retraction than solenoid devices. Plus, MELR is powered by a standard power supply, simplifying installation and increasing system design flexibility.
-
Touchbar Monitoring - M92
Request to Exit - REX
This indicator indicates that the push pad is being depressed. It is used to request exit to shunt alarm systems, release electromagnetic locks, or monitor egress.
It is among the most durable exit devices on the market, with additional security options.
The ED5200 rim exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in the rim, mortise, surface vertical rod, and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5-year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
