All CORBIN RUSSWIN Products
Technical Specs
| Handing | Non-Handed |
| Type | Surface |
| Mounting Group | Hydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Tri Mount |
| Hold Open | Yes |
| Back Check | Adjustable |
| Cold Weather Fluid | Yes |
| Special Rust Inhibitor | No |
| Delay | Yes |
| Degree Swing | 180 Deg. |
| Cover | Full |
| Drop Plate | Available |
| Through Bolts | Yes |
| Arm Type | Bouble Lever Arm, with PA Bracket |
| Cement Case | No |
| Screw Type | Self-Tapping |
| Voltage | Mechanical |
| Spacer | Available |
| Bracket | Available |
| Sealed Closer | Yes |
| Physically Handicap | Yes |
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | DC6210 A1 M71 M54 |
| Grade | Grade1 |
| Unit of Measure | Each |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 25 Years |
| Base Material | Varies |

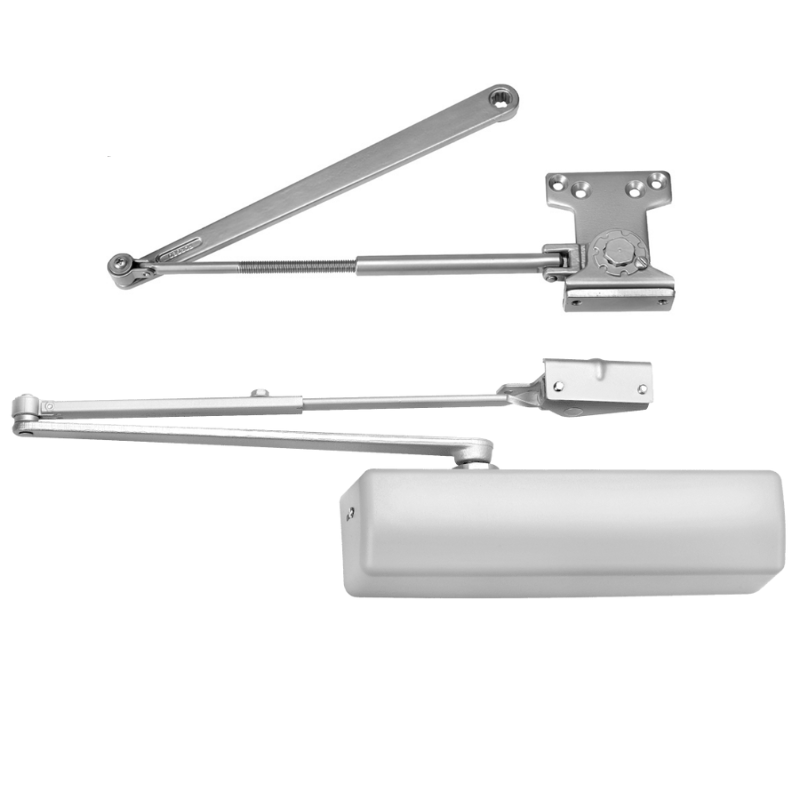

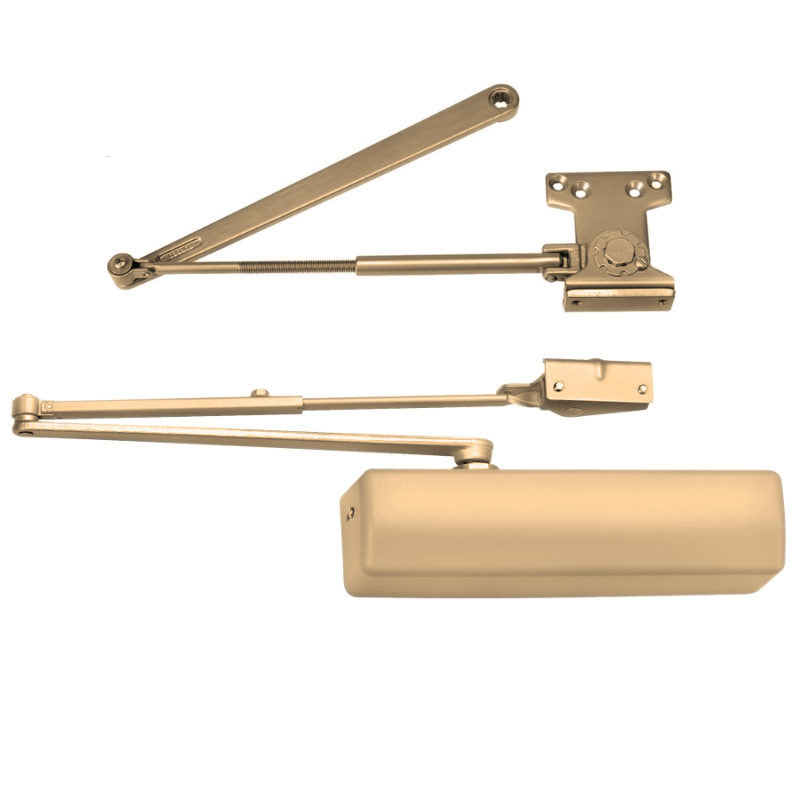

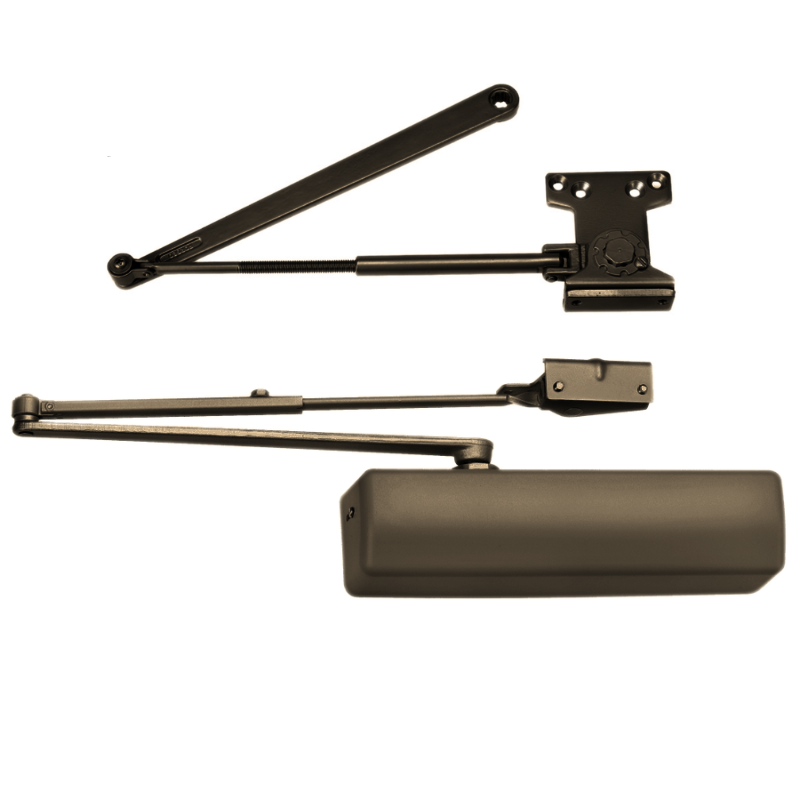

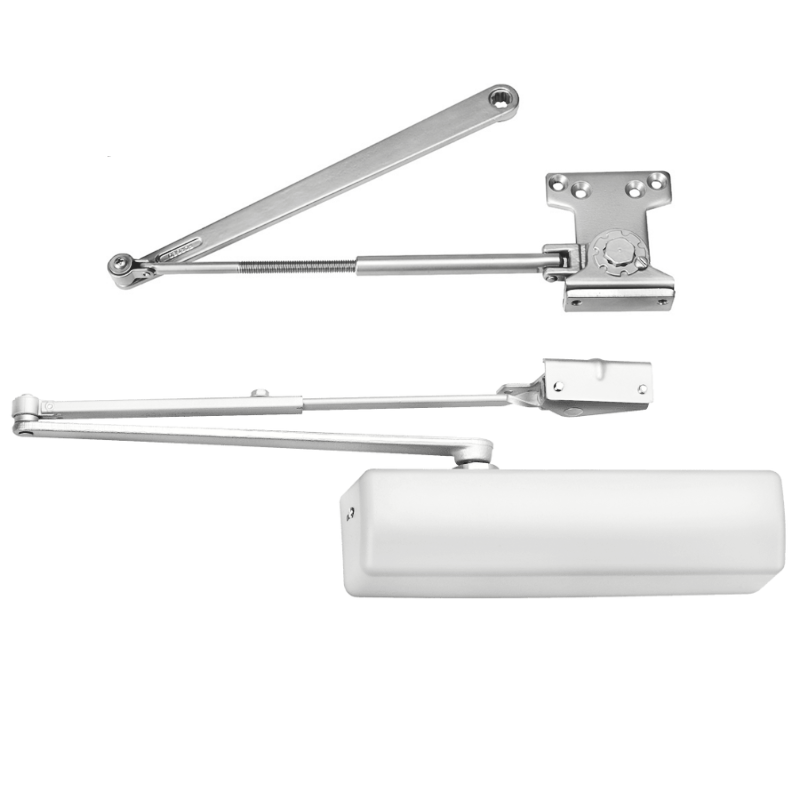

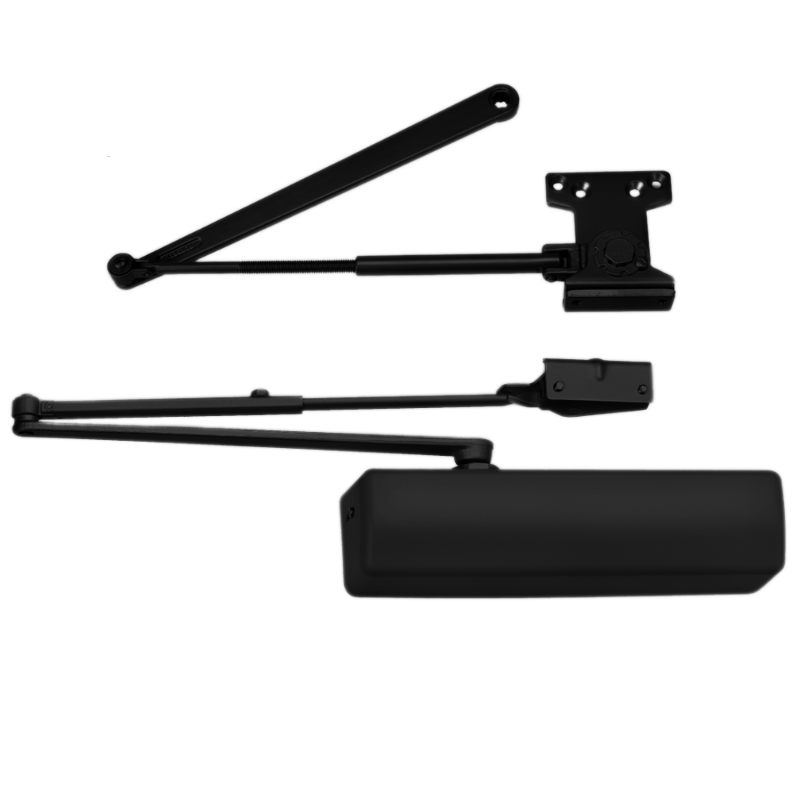

Corbin Russwin DC6210 A1-M71-M54, Surface Door Closer, Delayed Action, Double Lever Arm Friction Hold Open, Push or Pull Side Mount, Size 1 to 6, Full Cover, Grade 1, Non-Handed
The Corbin Russwin DC6210 A1-M71-M54 is a Grade 1 surface door closer suitable for push or pull side mounting. Featuring a double lever arm design and a full cover, it offers delayed action and a friction hold open option. This non-handed closer is available in sizes 1 to 6.
DC6000 Series Door Closers
A variety of features makes this the choice for retrofitting, quick installation, and longevity.
Corbin Russwin offers a wide variety of arms, tracks, and special brackets to meet special header/ frame conditions. The small footprint and unobtrusive cover are additional advantages to a versatile line of closers.
- Spring Power DC6200 closers: multi-sized; fully adjustable sizes 1 through 6. DC6400 closers: sizes 1 through 6; half-size adjustability. For recommended sizes, see page 14.
- Handing Non-handed (with the exception of some arms and accessories).
- Body Cast-iron case with seamless cold-headed steel spring tube.
- Arm Standard: forged steel. Arm options pages 8-10.
- Spindle Heat-treated steel with a crowned gear set for increased efficiency.
- Piston 1-3/8" diameter; precision machined, heat-treated steel.
- Springs Chrome silicon wire.
- UL / ULC / UL10c Listed for fire and cycle requirements.
- 15 Million Cycles Witnessed and verified by UL
