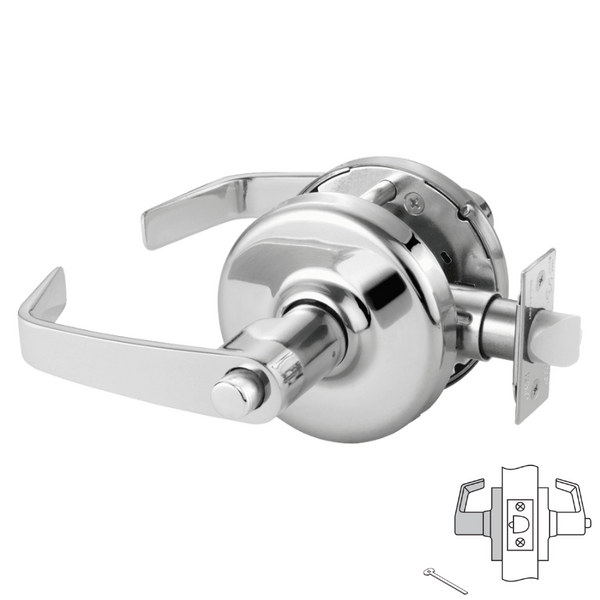

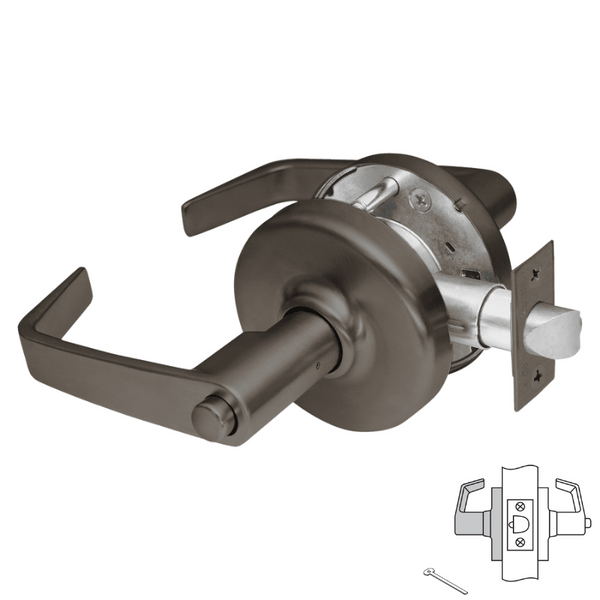

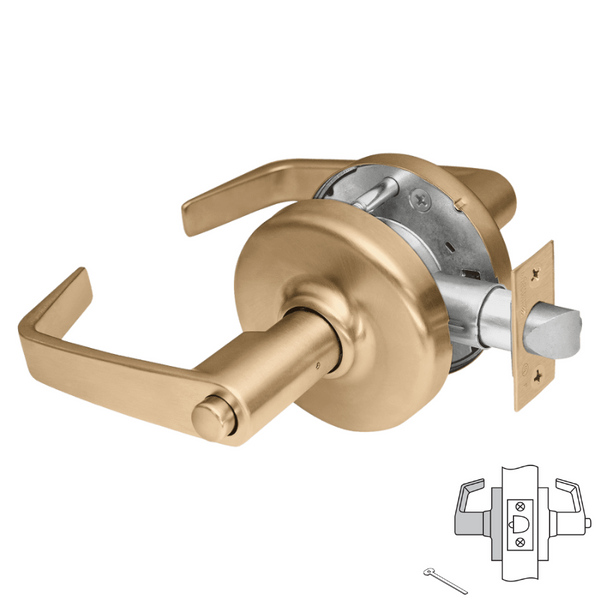

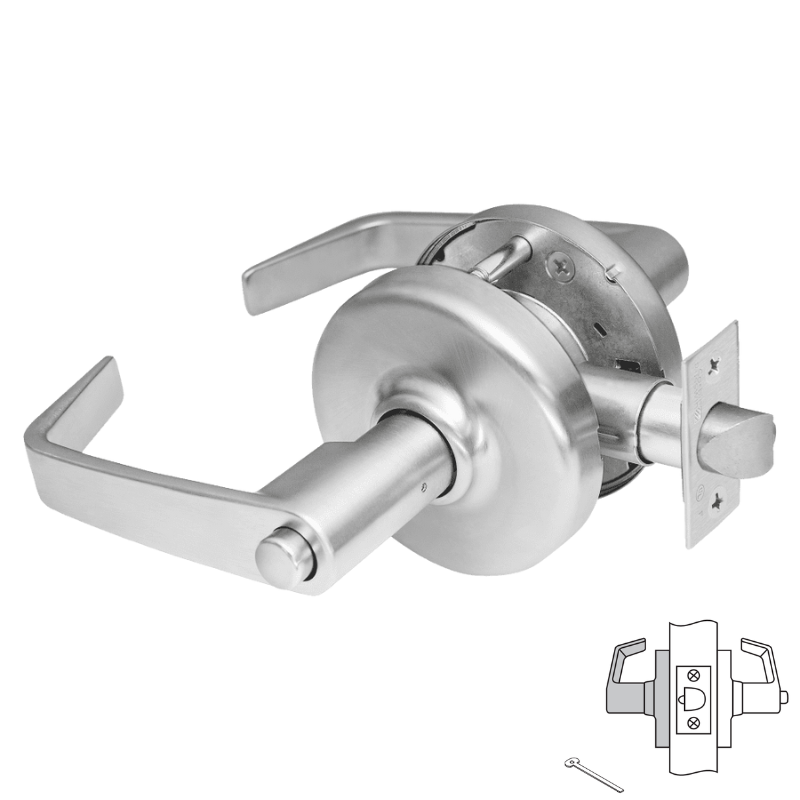

Corbin Russwin CL3820-NZD Privacy Cylindrical Lever Lockset, Newport Lever, 2-3/4" Backset, 4-7/8" Strike, Non-Keyed, Grade 2, Non-Handed
The Corbin Russwin CL3820-NZD is a high-quality privacy cylindrical lever lockset that features the Newport Lever design and a non-keyed mechanism. With a 2-3/4" backset and a 4-7/8" strike, this Grade 2 certified lockset is suitable for both right and left-handed doors.
Functions: Privacy, Bedroom or Bathroom, Non-Keyed
- Throw-off latch bolt by lever
- Outside lever locked by push button. (Lever handle is freewheeling in the locked position)
- Outside lever unlocked by emergency release tool outside, by rotating inside lever or by the closing door
- Inside lever always free
CL3800 Series Grade 2 Cylindrical Lever Locks
An ideal choice for standard commercial applications, the Corbin Russwin CL3810 Cylindrical Lever Lock provides a cost-effective Grade 2 standard-duty lockset that offers exceptional value and performance. Its compatibility with the CL3300 Series Extra Heavy-Duty Grade 1 and CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets reduces overall project costs without sacrificing functionality or durability.
Typical applications include: Interior offices; Closets; Multi-family housing; Restaurants; Retail complexes
Key Advantages:
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI/BHMA Grade 2 certification
- UL-cUL 3-hour fire rating
- Independent lever return springs
- Thrubolts on door for solid attachment
- Covers ANSI/BHMA door prep A156.115
