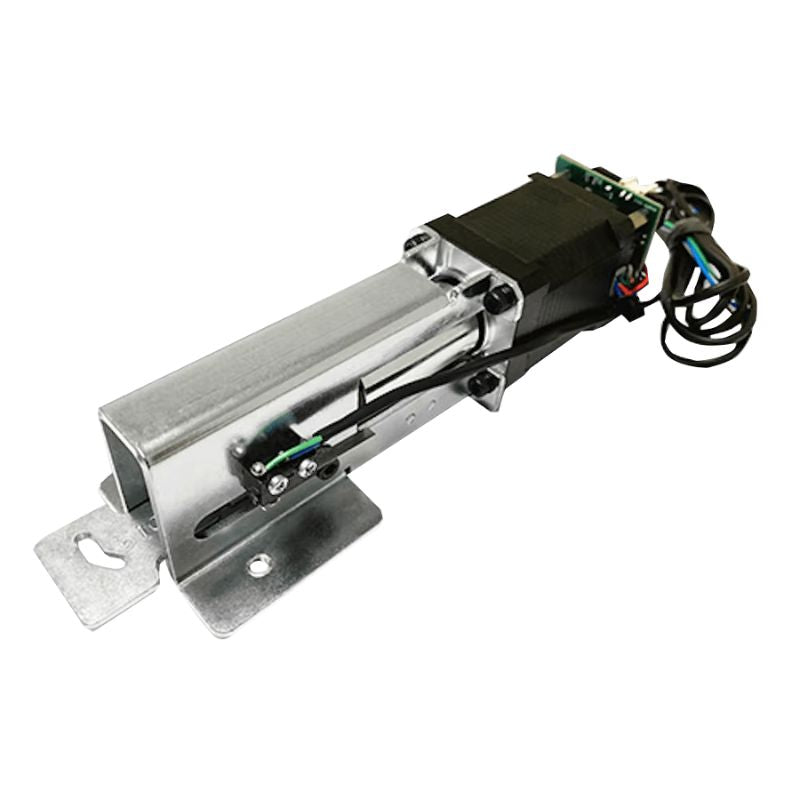

Command Access Technologies MLRK1-YAL6-REX Motorized Latch Retraction Kit, With Request to Exit, For Yale 6000 Series Exit Device

The MLRK1-YAL6 offers a practical and cost-effective method to convert a mechanical Yale 6000 series device into a motorized latch retraction device, all while preserving the device's listing. This motor-driven kit is straightforward to install, taking just minutes to set up, and includes an optional built-in request to exit feature. It's equipped with push-to-set (PTS) technology, facilitating easy adjustments of the latch or latches after installation. Moreover, the YAL6 includes an updated MM module that is energy-efficient yet powerful enough to handle tough jobs effectively.

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods Doors!
• Electric dogging rated for continuous duty - Auto Re-engage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18Ga wire - Long wire runs provides installer with convenience of placing the Command Locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
• 6” cable with robust Quick Molex Connector for MM4S module to 6’ Power lead to easily connect to power supply lead.

• Request to Exit
• Work with Yale 6000 Series Exit Device

MLRK1-YAL6-REX is compatible with:

Accentra 6000 Series Rim Exit Devices
