Accentra (Yale) TSR3-8805RL-626-LC Storeroom Or Closet Mortise Lock, Satin Chromium Plated Over Nickel

  • SKU: TSR38805RL626LC

Accentra (Yale) TSR3-8805RL-626-LC Storeroom Or Closet Mortise Lock, Satin Chromium Plated Over Nickel

  • SKU: TSR38805RL626LC
Sale priceDhs. 3,257.00/ea
Available (1 Week)
1 Week Lead Time

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Accentra (Yale) TSR3-8805RL-626-LC St...
Quantity
+
Sale priceDhs. 3,257.00
Accentra (Yale) 5801 Door Closer Surf...
Quantity
+
Sale priceDhs. 923.00
Accentra Mortise Cylinders
Quantity
+
Sale priceFrom Dhs. 427.00
Total

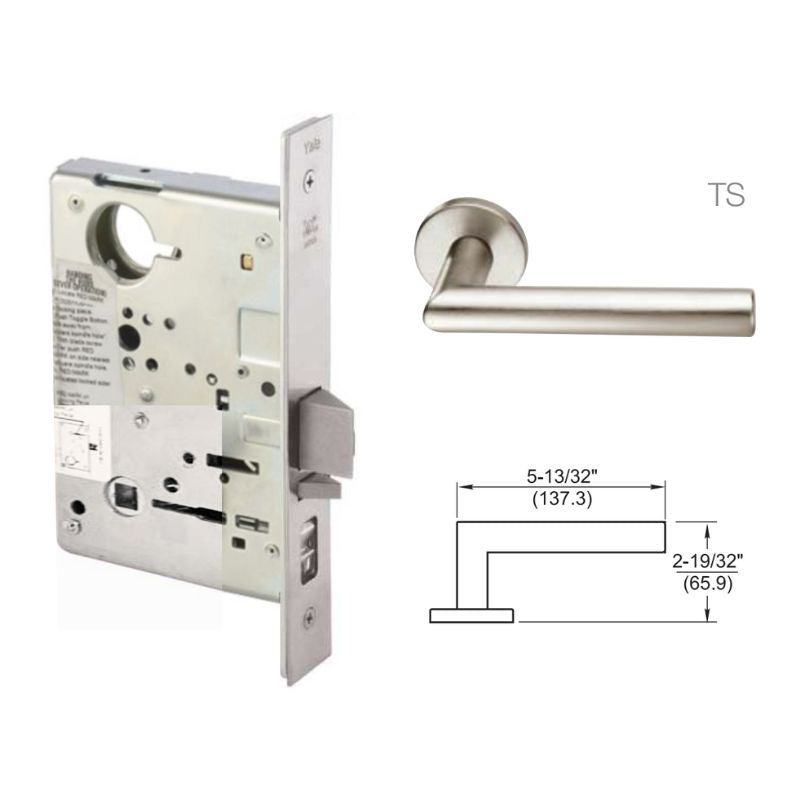

Accentra (Formerly Yale) TSR3-8805RL-626-LC Storeroom Or Closet Mortise Lock Reflections Thames Series TS Lever Design, R3 Rose, Less Cylinder, Specify Handing, Satin Chromium Plated Over Nickel Finish

The Accentra TSR3-8805RL-626 Storeroom Or Closet Mortise Lock is expertly crafted with a Satin Chromium Plated Over Nickel finish for a sleek and durable design. Its Reflections Thames Series TS Lever Design, R3 Rose, and Less Cylinder make it an ideal choice for any storage or closet space.

  • For use on storeroom, utility, exit doors
  • Latchbolt retracted by key outside, knob/lever inside
  • Outside knob/lever rigid at all times
  • Inside knob/lever always active
  • Deadlocking latchbolt

Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Yale 8800 Series Mortise Locks

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4"
  • Latchbolt: 3/4" stainless steel throw
  • Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
  • Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
  • Reversibility: Field reversible handing
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
  • Finishes: Available in 17 finishes
  • Warranty: 10 year mechanical
Manufacturer Accentra (Yale)
SKU TSR3-8805RL-626
Grade Grade 1
Installation Commercial
Origin
Unit of Measure Each
Function 05-Storeroom or Closet Lock
ANSI Function F07 - Storeroom/Exit
Lever/Knob Design TS - Thames TS Lever
Rose/Escutcheon Design R3 Rose
Cylinder Type Less Cylinder
Door Thickness 1-3/4"
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4"
Std. Strike Number 2815
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Product Type Mortise Lock



Cylinder Mortise Handing Chart
