Technical Specs
Function |
02-Privacy, Bedroom or Bath Lock |
ANSI Function |
F19 - Privacy/Bed/Bath |
Lever/Knob Design |
TQ - Thames TQ Lever |
Rose/Escutcheon Design | R3 Rose |
Door Thickness | 1-3/4" |
Std. Latch Backset Dim | 2-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" |
Std. Strike Number | 2815 |
Std. Strike Type | ASA |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Product Type | Mortise Lock |
Product Specs
Manufacturer | Accentra (Yale) |
SKU | TQR3-8802RL-626 |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |

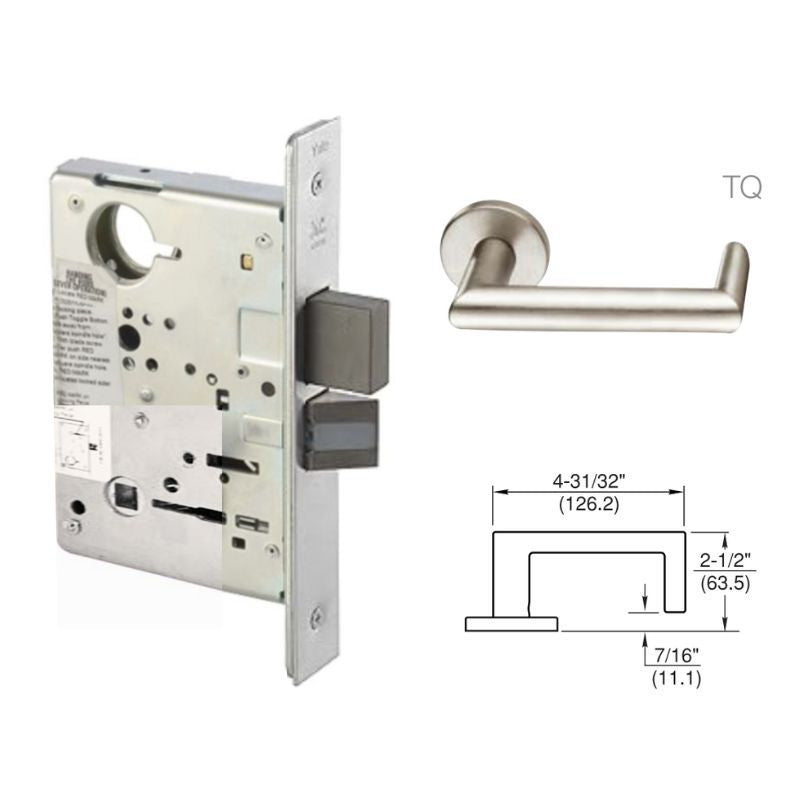

Accentra (Formerly Yale) TQR3-8802RL-626 Privacy Bath-Bedroom Mortise Lock Reflections Thames Series TQ Lever Design, R3 Rose, Specify Handing, Satin Chromium Plated Over Nickel Finish
Accentra TQR3-8802RL-626 Privacy with Deadbolt Mortise Lock, featuring the Reflections Thames Series TQ Lever Design with a R3 Rose, offers a professional and secure solution with a satin chromium plated finish over nickel. Please specify the desired handing for optimal installation.
- Latchbolt retracted by knob/lever either side
- Deadbolt operated by thumbturn inside
- When the deadbolt is projected, outside knob/lever is automatically locked
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
-
In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied
Reflections® Decorative Trim
Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
