Description

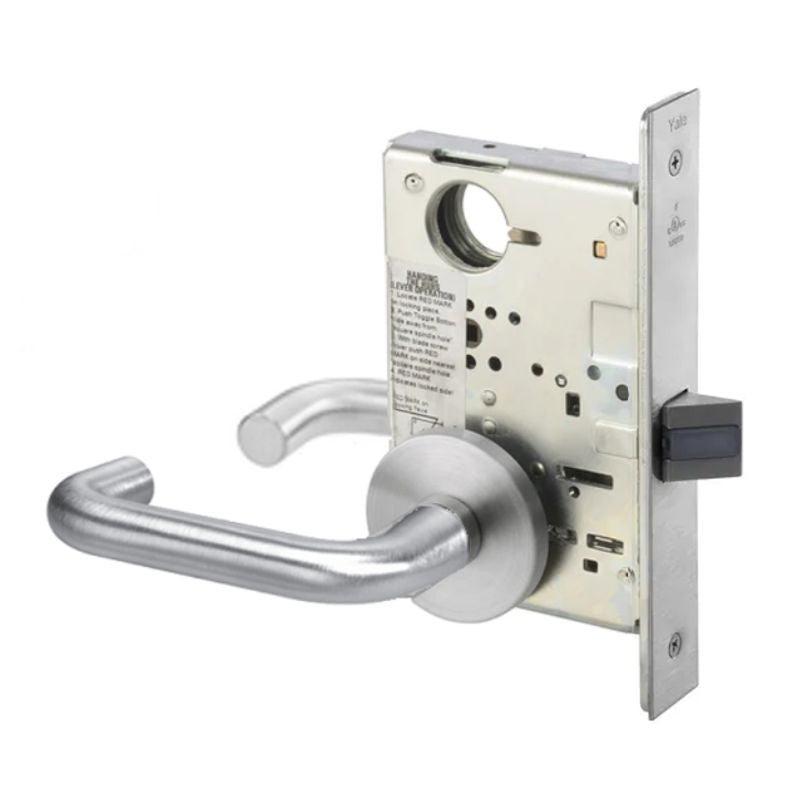

Accentra (Formerly Yale) CRR8801FL-626 Passage or Closet Mortise Lock, Carmel Lever, CO Rose, Grade 1, Field Reversible, Satin Chrome Plated Finish
The CRR8801FL-626 Passage or Closet Mortise Lock by Accentra (formerly Yale) features a Carmel Lever, CO Rose, and a Grade 1, Field Reversible design in a sleek Satin Chrome Plated finish.
- For doors that do not require locking
- Latchbolt retracted by knob/lever either side at all times
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | CRR8801FL 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Function | 01-Passage or Closet Latch |
| ANSI Function | F01 - Passage |
| Lever/Knob Design | CR - Carmel Lever |
| Rose/Escutcheon Design | CO Rose |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
