Technical Specs
Function | 47-Apartment Corridor Door Lock |
ANSI Function | F20 - Entry/Office |
Lever/Knob Design | AU - Augusta Lever |
Rose/Escutcheon Design |
CN Escutcheon |
Cylinder Type | Less Cylinder |
Door Thickness | 1-3/4" |
Std. Latch Backset Dim | 2-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" |
Std. Strike Number | 2815 |
Std. Strike Type | ASA |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Product Type | Mortise Lock |
Product Specs
Manufacturer | Accentra (Yale) |
SKU | AUCN808FL 626 LC |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Base Material | Brass or Bronze |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |

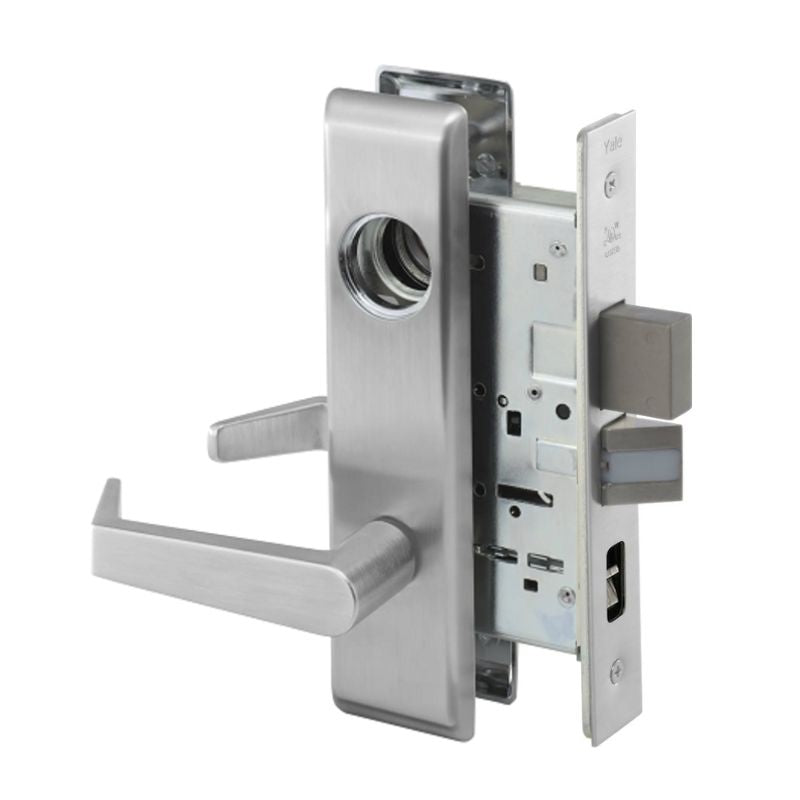

Accentra (Formerly Yale) AUCN8847FL-626-LC Apartment or Dormitory Entrance with Auxiliary Latch Mortise Lock, Augusta Lever, CN Escutcheon, Less Cylinder, Grade 1, Field Reversible, Satin Chrome Plated Finish
The Accentra AUCN8847FL-626-LC is a versatile and reliable choice for apartment or dormitory entrances. This mortise lock features an auxiliary latch, Augusta lever, CN escutcheon, and Grade 1 certification. With a field-reversible design and a satin chrome plated finish, it offers both functionality and style.
- Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator
- Deadbolt operated by key outside, thumbturn inside
- When outside knob/lever is locked, latchbolt and deadbolt are operated by key outside
- When deadbolt is projected, outside knob/lever is automatically locked
- Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt with outside knob/lever remaining locked.
- Deadlocking latchbolt
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
