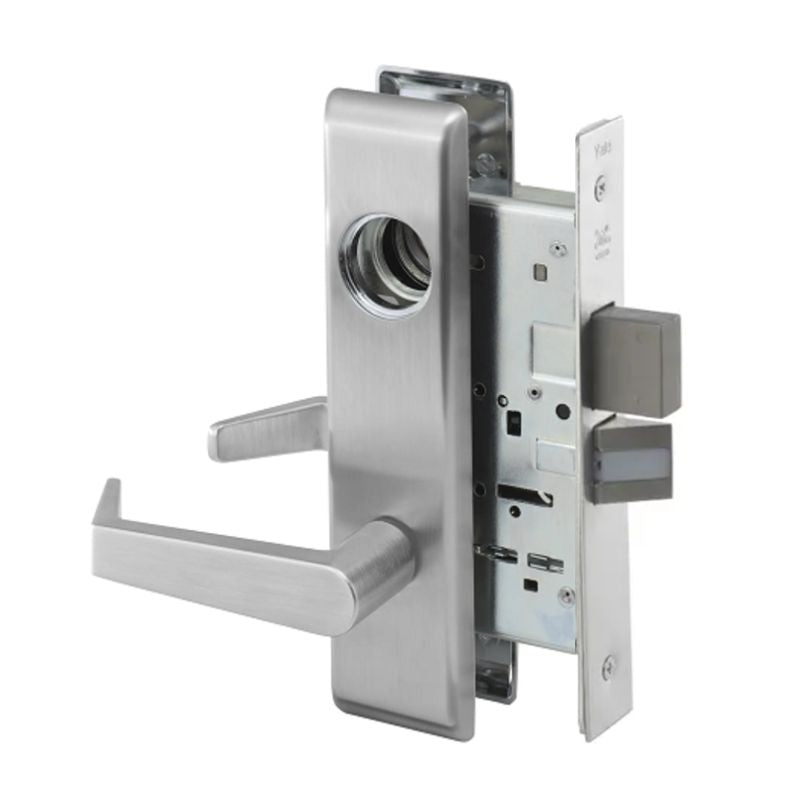

Accentra (Formerly Yale) AUCN8822FL-626-LC Dormitory Or Exit Mortise Lock, Augusta Lever, CN Escutcheon, Less Cylinder, Grade 1, Field Reversible, Satin Chrome Plated Finish
Accentra AUCN8822FL-626-LC is a robust and reliable dormitory or exit mortise lock, designed with the expert knowledge and experience of Yale. Featuring an Augusta lever and CN escutcheon, this grade 1 lock is field reversible and comes in a sleek and durable satin chrome plated finish. It also includes a cylinder, making it a complete and secure solution for any building.
- Latchbolt retracted by knob/lever either side
- Deadbolt operated by key outside and thumbturn inside
- When the deadbolt is projected, outside knob/lever is automatically locked
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt
- simultaneously, automatically unlocking outside knob/lever.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Â Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:Â UL/cUL fire rated up to 3 hours
- Windstorm:Â Certified (refer to local codes)
- Mechanism:Â Stainless steel
- Backset:Â 2-3/4"
- Latchbolt:Â 3/4" stainless steel throw
- Door Thickness:Â 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts:Â Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders:Â Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Â Field reversible handing
- Strikes:Â 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes:Â Available in 17 finishes
- Warranty:Â 10 year mechanical
