Description

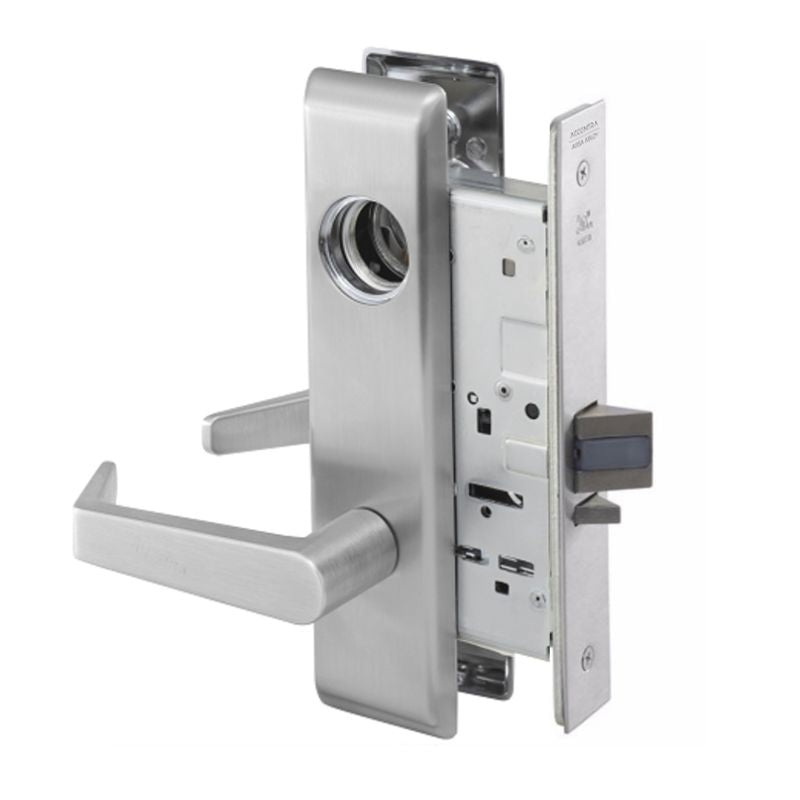

Accentra (Formerly Yale) AUCN8805FL-626-LC Storeroom Mortise Lock, Augusta Lever, CN Escutcheon, Less Cylinder, Grade 1, Field Reversible, Satin Chrome Plated Finish
The Accentra AUCN8805FL-626-LC Storeroom Mortise Lock, Less Cylinder, Satin Chrome Plated, is a Grade 1 lock that is field reversible and features an Augusta Lever and CN Escutcheon. It is a reliable and durable choice for any commercial or industrial setting.
- For use on storeroom, utility, exit doors
- Latchbolt retracted by key outside, knob/lever inside
- Outside knob/lever rigid at all times
- Inside knob/lever always active
- Deadlocking latchbolt
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | AUCN8805FL 626 LC |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Function | 05-Storeroom or Closet Lock |
| ANSI Function | F07 - Storeroom/Exit |
| Lever/Knob Design | AU - Augusta Lever |
| Rose/Escutcheon Design |
CN Escutcheon |
| Cylinder Type | Less Cylinder |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
