Description

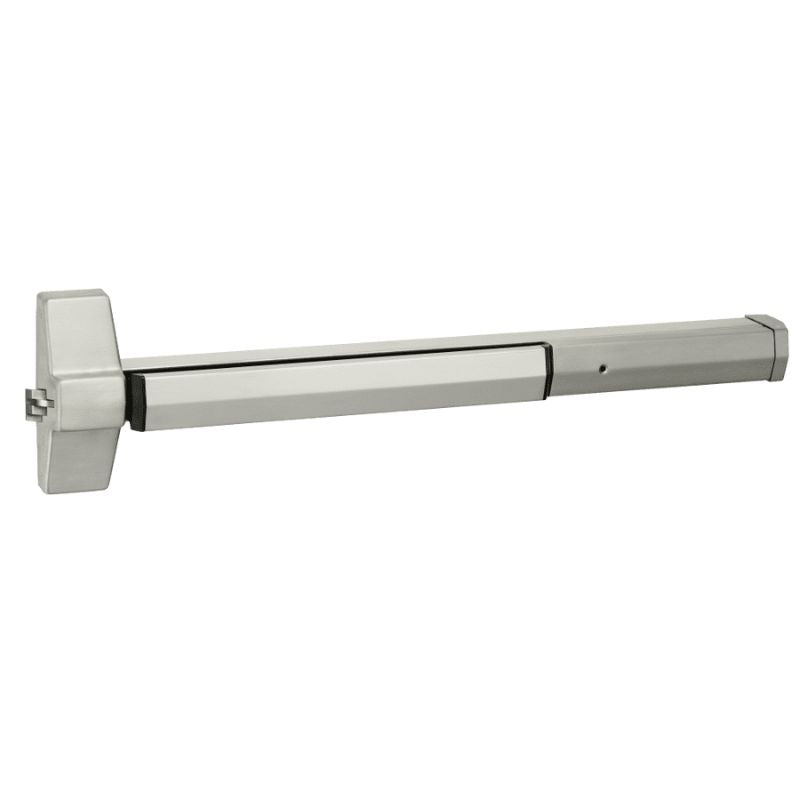

Accentra (Formerly Yale) 7150-36-630 Square Bolt Rim Exit Device, Exit Only, Wide Stile Pushpad, 30-36 Inch Door Width, Hex Key Dogging, Grade 1, Non Handed, Satin Stainless Steel Finish
The Accentra (formerly Yale) 7150-36-630 Square Bolt Rim Exit Device is a Grade 1, non-handed product designed for use on 30-36 inch wide doors. Featuring a satin stainless steel finish and a wide stile pushpad, this exit device also includes a hex key dogging mechanism for added security.
7000 Series Pushpad Exit Devices
Steel chassis and heavy-duty components for superior strength.
Yale® 7000 Series Exit Devices deliver an unparalleled combination of certification and a full range of mechanical and electromechanical functions and accessories. The 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building.
- Innovative: Featuring patented security options, including SquareBolt® latch bolt and delayed egress function
- Durable: Heavy-duty steel components are ANSI/BHMA Grade 1 certified for the ultimate in strength and security.
- Flexibility: Various options are available to customize this exit device to suit any opening
- Clean, modern look: Sleek design with a variety of attractive finish options to suit any decor
- High-quality steel chassis and heavy-duty components
- Full range of mechanical and electromechanical options to suit any life safety application and pair with existing security systems
- ANSI/BHMA Grade 1 certified
- UL/cUL listed for panic and fire doors
- Windstorm certified (refer to local codes)
- Five-year mechanical warranty, one-year trim warranty, two-year warranty on electrical options and components
Product Specifications
Vendor | Assa Abloy |
Manufacturer | Accentra |
SKU | 7150 36 630 |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
ANSI Number | A156.3, Type 4 or 28, Grade 1 |
Limited Warranty | 5 Years |
Finish | 630/US32D |
Finish Description | Satin Stainless Steel |
Finish Family | Matte Silver |
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Device Length | 36" |
Hand | Non-Handed |
Dogging Options | Hex Key Dogging |
Includes Trim | No |
Minimum Stile Size | 4-1/2" |
Door Material | Metal, Wood, or Composite |
Door Width | 30" - 36" |
Door Thickness | 1-3/4" |
Fire Rated | No |
Product Type | Rim Exit Devices |
Mechanical Options | Square Bolt |
