Accentra (Yale) 6100F-36-TB628-630 Rim Exit Device, TB628 Escutcheon Passage Function, 36" Device, Fire Rated, No Dogging, Satin Stainless Steel

  • SKU: 6100F36TB628630LHR
Accentra6100F-36-TB628-630 Rim Exit Device
Accentra6100F-36-TB628-630 Rim Exit Device
All Accentra Products

Accentra (Yale) 6100F-36-TB628-630 Rim Exit Device, TB628 Escutcheon Passage Function, 36" Device, Fire Rated, No Dogging, Satin Stainless Steel

  • SKU: 6100F36TB628630LHR
Dhs. 3,823.00/ea
Available (4‑6 Weeks)
4-6 Weeks Lead Time
Handing: LHR - Left Hand Reverse

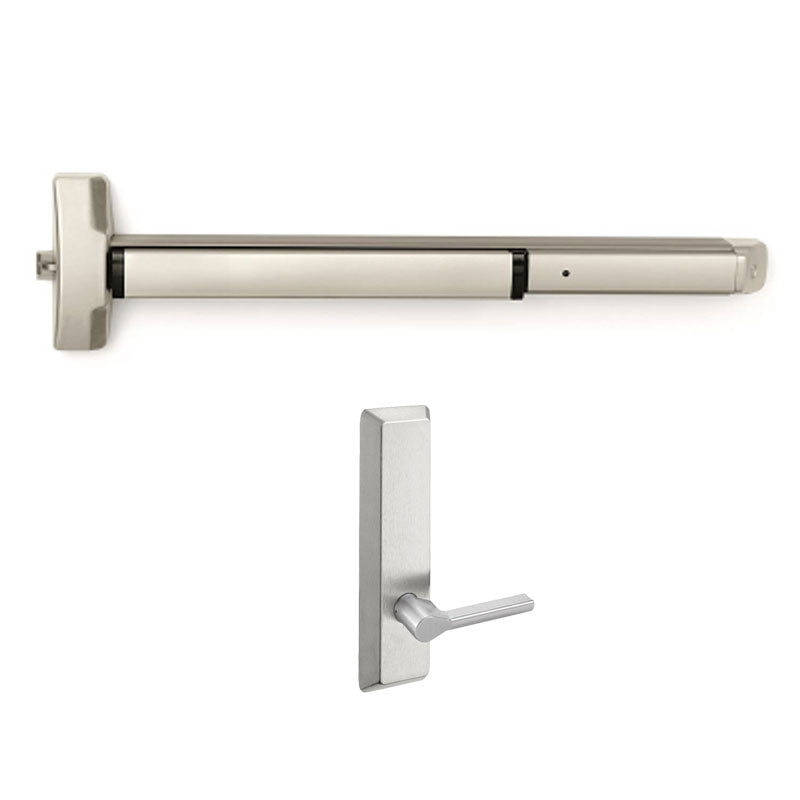

Accentra 6100F-36-TB628-630 is a 36" Fire Rated Rim Exit Device with a TB626F TB Lever Escutcheon in Passage Function in US32D Satin Stainless Steel Finish. The Accentra 6100F-36-TB628-63 is handed and has No Dogging. The 36" bar works for doors 33"-36" wide.

FEATURES

  • Designed for wide stile doors
  • 3/4" throw deadlocking stainless steel Pullman latch bolt
  • Available in double cylinder function (must specify handing)
  • Non-handed for easy installation

APPLICATIONS

  • Single swing doors
  • Pairs of doors with removable mullions
  • Wide stile aluminum, metal, wood, or composite door materials



Vendor Assa Abloy
Manufacturer Accentra
SKU 6100F 36 TB628 630
Grade Grade 1
Installation Commercial
Unit of Measure Each
ANSI Number ANSI/BHMA A156.3 Grade 1
Limited Warranty 10 Years
Fire Rated Yes {Variable}
Finish 630/US32D
Finish Description Satin Stainless Steel
Physical Appearance Wide Stile Pushpad
Device Type Rim
Device Length 36"
Mechanical Options Fire Rated Device
Includes Trim No
Minimum Stile Size 4 1/2"
Door Material Metal or Wood
Door Width 30" - 36"
Door Thickness 1 3/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices



Product Cut Sheet

Panic Handing Chart
