Description

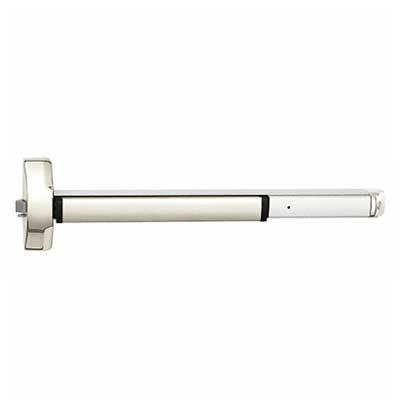

Accentra (Formerly Yale) 6100-F-48-630 Fire Rated Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, 42" - 48" Door Opening Width, Exit Only, Less Trim, Grade 1, Satin Stainless Steel Finish, Non-Handed
The Accentra 6100-F 48" 630 Fire Rated Exit Device, Exit Only in Satin Stainless Steel Finish. Accentra 6100-F-48" Bar Is a Fire Rated Rim Exit Device, a Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors Has a 3/4" throw deadlocking stainless steel Pullman latch bolt And Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified.
FEATURES
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel Pullman latch bolt
- Available in double cylinder function (must specify handing)
- Non-handed for easy installation
APPLICATIONS
- Single swing doors
- Pairs of doors with removable mullions
- Wide-stile aluminium, metal, wood, or composite door materials
Product Specifications
Vendor | Assa Abloy |
Manufacturer | Accentra |
SKU | 6100F 48 630 |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
ANSI Number | ANSI/BHMA A156.3 Grade 1 |
Limited Warranty | 10 Years |
Fire Rated |
Yes |
Finish | 630/US32D |
Finish Description | US32D/630 Satin Stainless Steel |
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Device Length | 48 In. |
Mechanical Options | Fire Rated Device |
Includes Trim | No |
Minimum Stile Size | 4-1/2 In. |
Door Material | Metal or Wood |
Door Width | 42 In. - 48 In. |
Door Thickness | 1-3/4 In. |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Rim Exit Devices |
Document Center
Handing Chart
