Description
Accentra (Formerly Yale) 6100-48-613E Rim Device, Pullman Latch Exit Bar, Wide Stile Pushpad, Hex Key Dogging, 42" - 48" Door Opening Width, Exit Only, Less Trim, Grade 1, Dark Oxidized Bronze Finish, Non-Handed

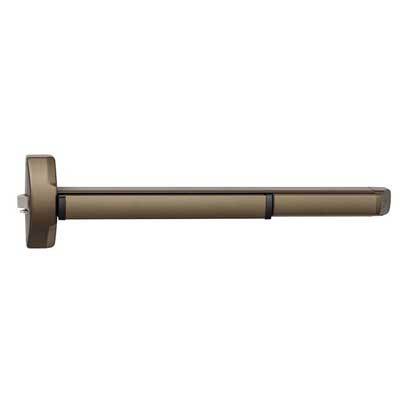

The Accentra (Formerly Yale) 6100-48-613E Exit Only Panic Bar, Exit Device 48" Bar In a Dark Oxidized Satin Bronze Finish. The Accentra 6100-ED48" 613E Rim Exit Device Is a Commercial Grade One Panic Bar. The 6100 Exit Device Is Designed for wide stile doors Has a 3/4" throw deadlocking stainless steel Pullman latch bolt And Is Non-Handed. ANSI/BHMA A156.3 Grade 1 certified. Accentra 6100 Has a Hex Key Dogging For Use Non-Rated Doors.
FEATURES
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel Pullman latch bolt
- Non-handed for easy installation
Product Specifications
Vendor | Assa Abloy |
Manufacturer | Accentra |
SKU | 6100 48 613E |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
ANSI Number | ANSI/BHMA A156.3 Grade 1 |
Limited Warranty | 10 Years |
Fire Rated | No |
Finish | 613E/US10B |
Finish Description | Dark Oxidized Bronze |
Finish Family | Dark Bronze |
Technical Specifications
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Device Length | 48 In. |
Includes Trim | No |
Minimum Stile Size | 4-1/2 In. |
Door Material | Metal or Wood |
Door Width | 42 In. - 48 In. |
Door Thickness | 1-3/4 In. |
Fire Rated | No |
Reversible | Yes |
Product Type | Rim Exit Devices |
