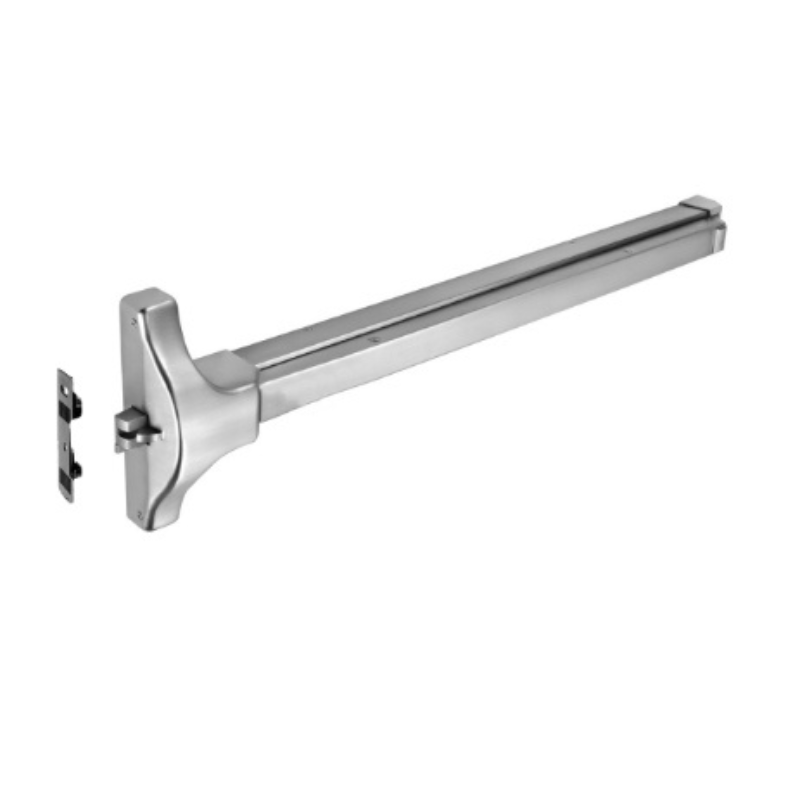

Accentra (Yale) 2150F Square Bolt Fire Rated Rim Exit Device, Exit Only, Wide Stile Pushpad, Less Dogging, Non Handed

  • SKU: 2150F36689
Accentra 2150F-800
Accentra 2150F-800
Accentra 2150F-630
Accentra 2150F-691
Accentra 2150F-693
Accentra 2150F-695
Accentra 2150F-613E
Accentra 2150F-BSP
Accentra 2150F-WSP
Zoomed view
All Accentra Products

Accentra (Yale) 2150F Square Bolt Fire Rated Rim Exit Device, Exit Only, Wide Stile Pushpad, Less Dogging, Non Handed

  • SKU: 2150F36689
  • ✓
    Available (1 Week)
    1 Week Lead Time
Your Price
Dhs. 1,917.00/ea
Finish: 689 Aluminum
Door Width: 36"

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Accentra (Yale) 2150F Square Bolt Fir...
Quantity
–
+
From Dhs. 1,917.00
Accentra (Yale) 217F-689 Trim for 210...
Quantity
–
+
Dhs. 675.00
Total

Accentra (Yale) 2150F Square Bolt Fire Rated Rim Exit Device, Exit Only, Wide Stile Pushpad, Less Dogging, Grade 1, Non Handed

Professional-grade fire-rated exit device engineered for demanding commercial applications. This Yale Accentra 2150F model features a square bolt mechanism with wide stile pushpad design, delivering reliable egress control without dogging functionality. Grade 1 rated construction ensures superior durability and performance in high-traffic environments. Non-handed configuration provides installation flexibility across various door orientations. Ideal for facilities requiring certified fire-rated exit solutions that meet stringent safety and accessibility standards.

Features

  • SquareBolt security deadbolt designed for maximum holding power
  • Designed for wide stile doors
  • Non-handed for easy installation
  • Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices

Applications

  • Single swing doors
  • Pairs of doors (mullion required)
  • Metal, wood or composite door materials
Sizes:


36" - For door widths 30" - 36"

42" - For door widths 36-1/2" - 42"

48" - For door widths 42" - 48"
Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Deadbolt 1" (25mm) slide projection bolt with full 3/4" (19mm) projection
Strike(Optional Buy Separately) 757F, 793 optional (double door application, panic only)
Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit
hardware.
Trims

121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F
series escutcheon trim, 630F series pull/thumbpiece trim.
ANSI/BHMA

Certified: A156.3 Type 1 or 28, Grade 1
Dogging

Less dogging.
Warranty

3-year limited




ANSI/BHMA:
Certified: A156.3 Type 1 or 28, Grade 1
