Description

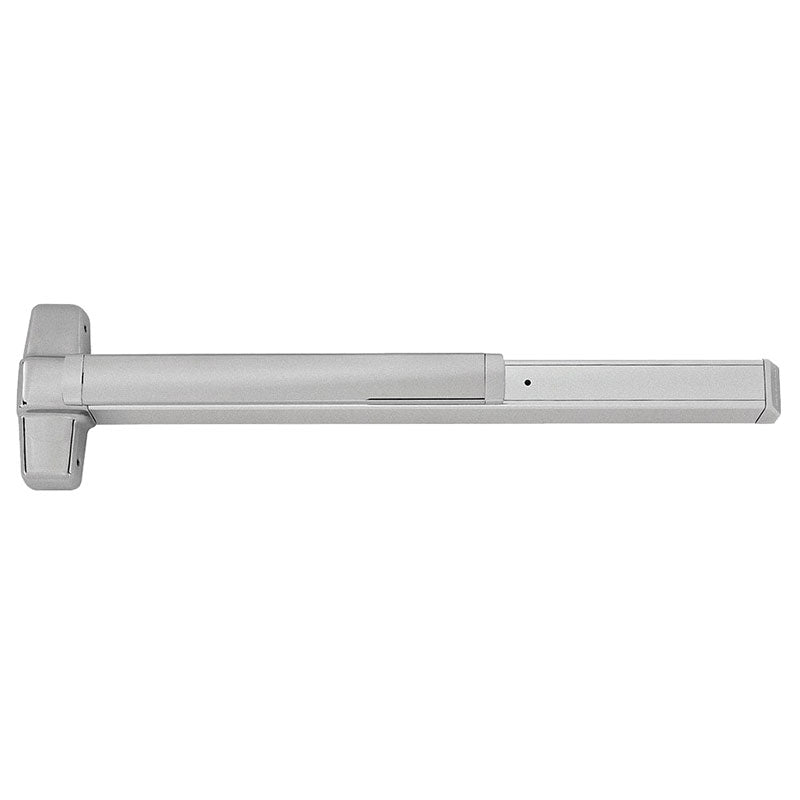

Von Duprin 9849 Grade 1 Concealed Vertical Cable Exit Device, 48" Device, 82" to 96" Door Height, Exit Only, Hex Dogging, Satin Chrome Finish, Field Reversible
9849 Concealed vertical cable device
9849 Concealed vertical cable device for use on single or double metal
doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3
2014, Grade 1. The 9849 device has a smooth mechanism case and the 9949 device
has a grooved case. The concealed vertical cable device is non-handed except when
the following device options are used: SD (special dogging), or SS (signal switch).
Product Specs
Manufacturer | Von Duprin |
SKU | 9849EO 4 |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL305 |
ANSI Number | A156.3 2014 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | No |
Burglar Rated | No |
ADA Compliance | No |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Concealed Vertical Cable |
Mechanical Function | Exit Only, Accepts Various Trim |
Device Length | 48" |
Hand | Field Reversible |
Dogging Options | Hex Dogging |
Top Strike | 249 |
Strike Bottom | 349 |
Includes Trim | No |
Trim Type | Less Trim |
Includes Cylinder(s) | No |
Minimum Stile Size | 4 1/4" |
Door Material | Metal |
Door Width | 34" to 48" |
Door Height | 82" to 96" |
Door Thickness | 1 3/4" - 2 1/4" |
Fire Rated | No |
Reversible | Yes |
Product Type | Concealed Vertical Cable Exit Devices |
