Description

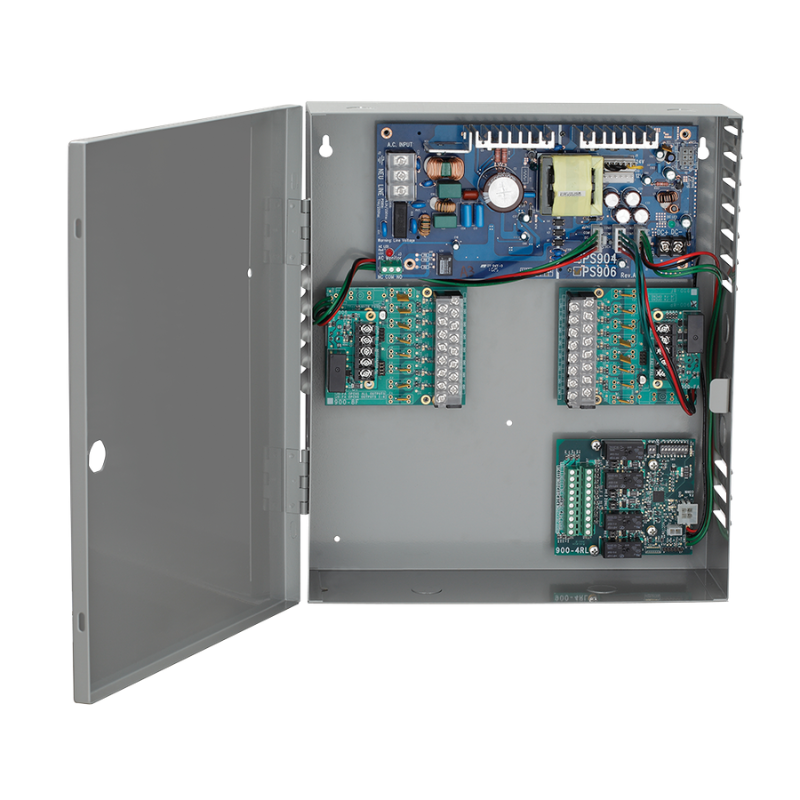

Von Duprin PS906 Base Power Supply, 6A @ 12/24 VDC, Field Selectable
The Von Duprin PS906 Base Power Supply delivers reliable 6A regulated output with field-selectable 12/24VDC operation, making it ideal for powering electrified panic devices, electric strikes, access control hardware, and electrified trims in commercial environments. Designed with a universal 120–240VAC input, foldback overload protection, LED status indicators, and isolated SPDT AC monitoring contacts, the PS906 ensures consistent performance and system visibility. Its modular design accepts 900 Series option boards—including relay, fire alarm interface, fuse distribution, and battery backup modules—allowing flexible configuration for security, healthcare, education, and high-traffic facilities. UL 294 and ULC-S318 listed, this heavy-duty power supply is built for dependable access control integration and long-term durability.
Features
- Constant output rating at both 12VDC or 24VDC provides superior performance; includes field selectable jumper
- Flat mounting of option boards provides easier access to terminal blocks for connection of electrified devices
- High voltage protective cover
- Battery back-up board auto-selects voltage
- Fire alarm relay can be configured to provide either switched or un-switched outputs from a power supply
- PS914 designed with high inrush current for powering electrified panic devices
- Universal 120-240 VAC input
- Low voltage DC, regulated and filtered
- Electronic power limiting foldback circuit for AC current overload protection
- Fused primary input
- AC status monitor- isolated SPDT contacts
- AC input and DC output LED status indicators
- Cover mounted AC input indication
- Hinged cover with lock down screws
- Optional keylock sold separately
- UL 294, ULC-S318, RoHS, and FCC Part 15 certified
Option Boards
| 900-4R | 4 relay controlled output board to power multiple devices |
| 900-4RL | 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock |
| 900-8F | Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection |
| 900-8P | 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2) |
| 900-FA | Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency |
| 900-BB | Battery backup |
| 900-2RS | 2 relay control board for electric latch panic devices (EL or QEL), electric strikes or electrified trim |
| 900-BBK | Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load |
Product Specifications
| Manufacturer | Von Duprin |
| SKU | PS906 |
| Grade | Grade 1 |
| Transformer Type | DC |
| Unit of Measure |
Each |
| Installation |
Commercial |
Technical Specifications
| Output Volts | 12/24 V |
| Fire Alarm Relay | No |
| Modular Options | No |
| Transformer Type | DC |
| Transformer Output | 5 to 10 Amps |
| Product Type | Power Supplies |
| AC primary | T6.3A, 250VAC, 5 x 20mm |
| Cabinet | 14"H x 12"W x 4"D in grey, baked enamel finish |
