All QualityDoor Products

Von Duprin Exit Device Trims for 98/99 Series Exit Devices

  • SKU: 996L06RV626LHR
Dhs. 2,038.00/ea
In Stock
In Stock
Trim: 996L-06-RV Classroom 06 Lever
Finish: US26D-626 Satin Chrome
Handing: LHR Left Hand Reverse
Handing Guide:
handing chart image

Von Duprin Exit Device Trims for the 98/99 Series Exit Devices

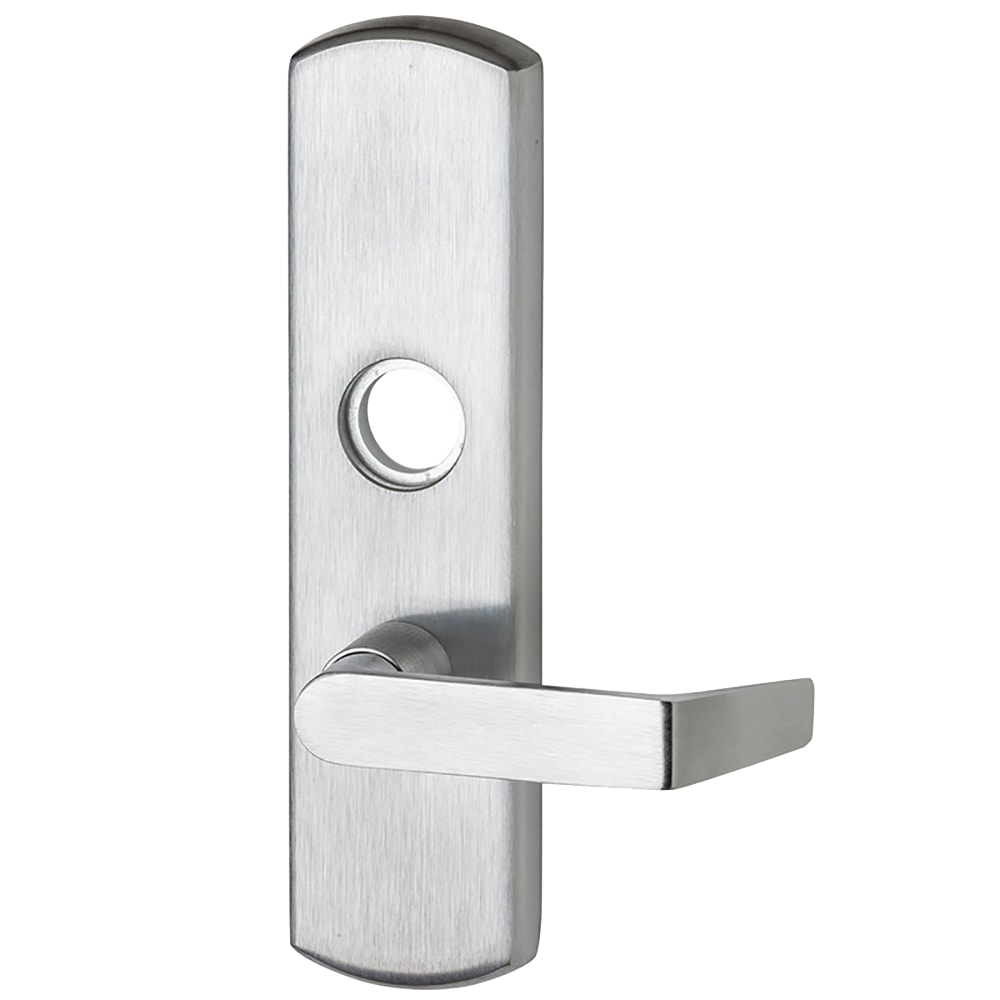

Von Duprin 996L-06-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 06 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-06-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Classroom Function: Key locks and unlocks
  • ANSI Function: 08
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-06-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 06 Lever


Technical Specs

Device Type Trim
Mechanical Function Classroom
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-03-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 03 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-03-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Classroom Function: Key locks and unlocks
  • ANSI Function: 08
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-03-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 03 Lever


Technical Specs

Device Type Trim
Mechanical Function Classroom
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-07-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 07 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-07-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Classroom Function: Key locks and unlocks
  • ANSI Function: 08
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-07-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 07 Lever


Technical Specs

Device Type Trim
Mechanical Function Classroom
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-NL-06-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 06 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-06-RV is a Night Latch function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Night Latch Function: Key retracts latch bolt
  • ANSI Function: 03
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-NL-06-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 06 Lever


Technical Specs

Device Type Trim
Mechanical Function Night Latch
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-NL-03-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 03 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-NL-03-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Night Latch Function: Key retracts latch bolt
  • ANSI Function: 03
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-NL-03-RV
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 03 Lever


Technical Specs

Device Type Trim
Mechanical Function Night Latch
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-NL-07-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 07 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-NL-07-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Night Latch Function: Key retracts latch bolt
  • ANSI Function: 03
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-NL-07-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 07 Lever


Technical Specs

Device Type Trim
Mechanical Function Night Latch
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim


Von Duprin 996L-NL-17-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 17 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder

The Von Duprin 996L-NL-17-RV is a Night Latch function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.

  • Night Latch Function: Key retracts latch bolt
  • ANSI Function: 03
  • Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
  • Projection: 2 7⁄8" (73mm)
  • Cylinder Type: Rim Cylinder
  • Handed/Field Reversible

Product Specs

Manufacturer Von Duprin
SKU 996L-NL-17-R/V
Grade Grade 1
Installation Commercial
Origin —
Unit of Measure Each
Base Material Brass or Bronze
Design A 17 Lever


Technical Specs

Device Type Trim
Mechanical Function Night Latch
Hand LHR or RHR
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Cylinder Included No
Cylinder Type Rim
Fire Rated No
Reversible Yes
Product Type Exit Device Trim



Von Duprin 990DT Dummy Escutcheon Pull Trim For 98/99 Series Exit Devices, Non Handed

  • Dummy Trim - Pull when dogged
  • Pull Center to Center: 5 1/2" (140mm)
  • Projection 2" (51mm)
  • No Cylinder'
  • ANSI Function: 02

Product Specs

Manufacturer Von Duprin
SKU 990DT
Grade Grade 1
Installation Commercial
Origin —
Base Material Brass or Bronze


Technical Specs

Device Type Trim
Mechanical Function Dummy
Hand Non-Handed
Includes Trim Yes
Trim Type Pull
Trim Design Escutcheon Pull
Fire Rated No
Product Type Exit Device Trim



Von Duprin 990NL-RV Night Latch Escutcheon Pull Trim For 98/99 Series Rim/Vertical Rod Exit Devices, Non-Handed, SOLD LESS CYLINDER

  • Night Latch Function: Key Retracts Latch Bolt
  • ANSI Function: 03
  • Escutcheon plate size: 3" x 14 3⁄16" x 3⁄32" (76 x 360 x 2mm)
  • Pull Center to Center: 5 1⁄2" (140mm)
  • Projection: 2" (51mm)
  • Cylinder Type: Rim Cylinder

Product Specs

Manufacturer Von Duprin
SKU 990NL-R/V
Grade Grade 1
Installation Commercial
Origin —
Base Material Brass or Bronze


Technical Specs

Device Type Trim
Mechanical Function Night Latch
Hand Non-Handed
Includes Trim Yes
Trim Type Pull
Trim Design Escutcheon Pull
Cylinder Type Rim
Fire Rated No
Product Type Exit Device Trim
Product Cut Sheet

Panic Handing Chart

Related Hardware

Sargent 704-ETL-US26D Exit Device Trim, Night Latch
SARGENT
Sargent 704-ETL-LC Exit Device Trim, Night Latch, Key Retracts Latc...
From Dhs. 1,602.00
Choose variants

Tell CTL881
TELL
Tell CTL881 Entry Lever Trim for 8000 Series Exit Devices, Schlage ...
From Dhs. 536.00
Choose variants

Sargent 776-8-ETL-24V-US26D Electrified Lever Trim
SARGENT
Sargent 776-8-ETL-24V-LC Electrified Lever Trim, ETL Trim, 24V, Fai...
Dhs. 3,269.00

TELL CTL886US26DSCCKD
TELL
Tell CTL886 Storeroom Lever Trim for 8000 Series Exit Devices - US2...
Dhs. 536.00

Tell Exit Device Trim TP81-US28-SC-KD
TELL
Tell TP81-US28-SC-KD Exit Device Trim, Entry Function Thumbpiece Pu...
Dhs. 586.00

Sargent 814-PTB-US32D-LC Nightlatch Pull Exit Device Trim
SARGENT
Sargent LC-814-PTB Nightlatch Pull Exit Device Trim, PTB Design, Le...
Dhs. 1,005.00

Tell 8P03
TELL
Tell 8P03 Wing Pull Trim for Exit Devices Only - EX100014, Less Cyl...
Dhs. 186.00

Tell CTL875
TELL
Tell CTL875 US26D Passage Lever Trim Only for 8000 Series Exit Devi...
Dhs. 446.00

AccentraAU-446F-626 Exit Device Lever Trim Classroom Function
Accentra
Accentra (Yale) AU-446F Exit Device Lever Trim Classroom Function, ...
From Dhs. 552.00
Choose variants

Corbin Russwin N955-630-LC Classroom Function with Newport Trim
CORBIN RUSSWIN
Corbin Russwin N955 Exit Device Trim Classroom Function Newport Lev...
Dhs. 1,860.00

Recently viewed
