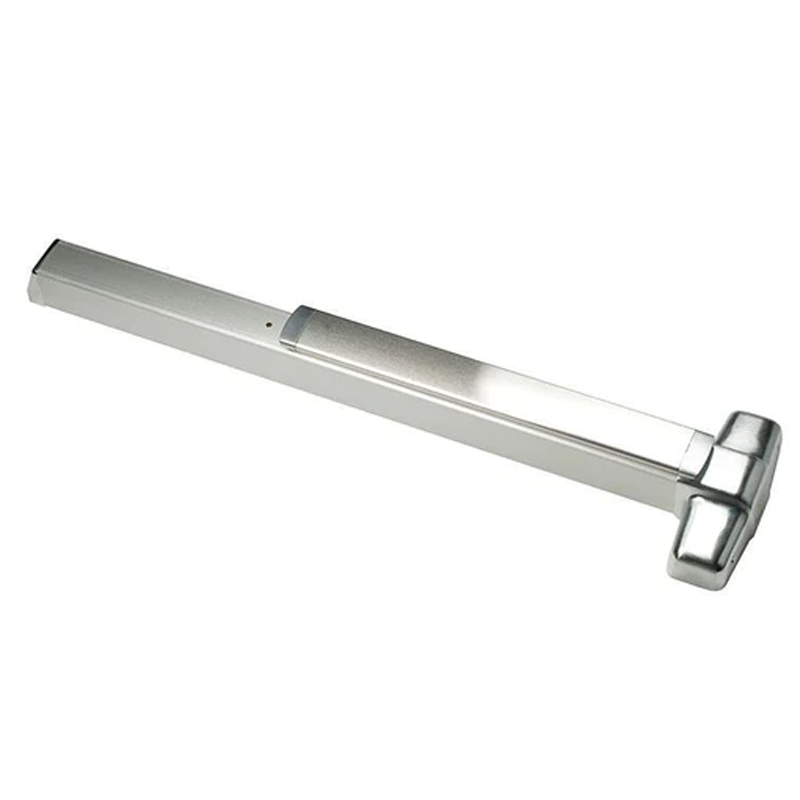

Von Duprin 9847 NL-OP 3 26D Concealed Vertical Rod Exit Bar
The Von Duprin 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
Technical Specifications
Technical Specs
Physical Appearance
Wide Stile Pushpad
Device Type
Concealed Vertical Rod
Mechanical Function
Nightlatch
Device Length
36"
Hand
Field Reversible
Dogging Options
Hex Key Dogging
Top Strike
338
Strike Bottom
385A
Includes Trim
Yes
Trim Type
Cylinder Only
Trim Part No.
110MD-NL 26D
Includes Cylinder(s)
No
Cylinder Type
Rim
Minimum Stile Size
4-1/2"
Door Material
Hollow Metal
Door Width
28" to 36"
Door Height
80" to 100"
Door Thickness
1-3/4" - 2-1/4"
Fire Rated
No
Reversible
Yes
Product Type
Concealed Vertical Rod Exit Devices
