Von Duprin 900-2RS-FA Base Power Supply, 2 Relay Output For Electric Exit Devices, Interface Relay For Fire Alarm

  • SKU: 9002RSFA
  • ✓
    Available (2 Weeks)
    2 Weeks Lead Time
Your Price
Dhs. 1,053.00/ea

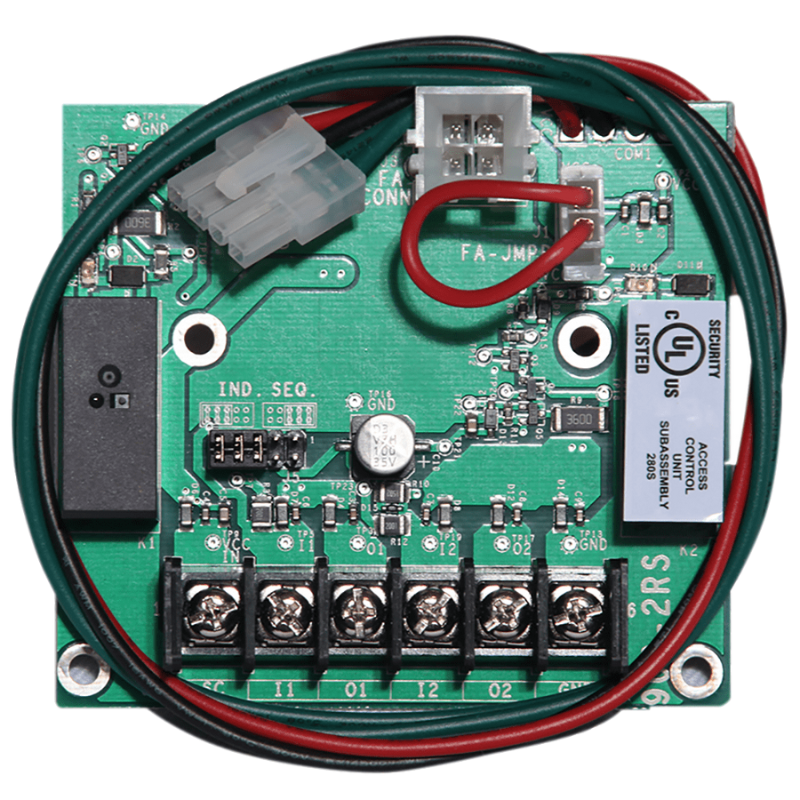

Von Duprin 900-2RS-FA Base Power Supply, 2A @ 12/24 VDC Field Selectable, 2 Relay Output For Electric Latch Panic Devices, Electric Strikes Or Electrified Trim, Emergency Interface Relay Integrates With Fire Alarm

This Von Duprin power supply bridges access control and emergency systems in a single unit. Rated for 2-amp output at field-adjustable 12 or 24 VDC, it energizes electric panic devices, electromagnetic strikes, and electrified door hardware while incorporating a dedicated fire alarm interface relay for automatic system integration. The two-relay design enables independent control circuits, essential for facilities requiring coordinated security and life-safety functionality.

  • 2RS: 2 relay control board for electric latch panic devices (EL or QEL), electric strikes, or electrified trim.
  • FA: Emergency interface relay integrates with the fire alarm and is used to cut power in case of any emergency
Manufacturer Von Duprin
SKU 900-2RS-FA
Grade Grade 1
Unit of Measure Each
Installation Commercial
Input Voltage Board requires 0.045A max. of power supply output current to operate
Output Voltage 12/24VDC when AC powered / 9.6-13.2VDC or 19.2-26.4VDC when battery powered
Temperature/Humidity 32°-120° F (0°- 49° C)
U.L. Listed UL 294, ULC-S318, RoHS, & FCC Part 15
Warranty 1 Year Warranty
Weight 1.0000
