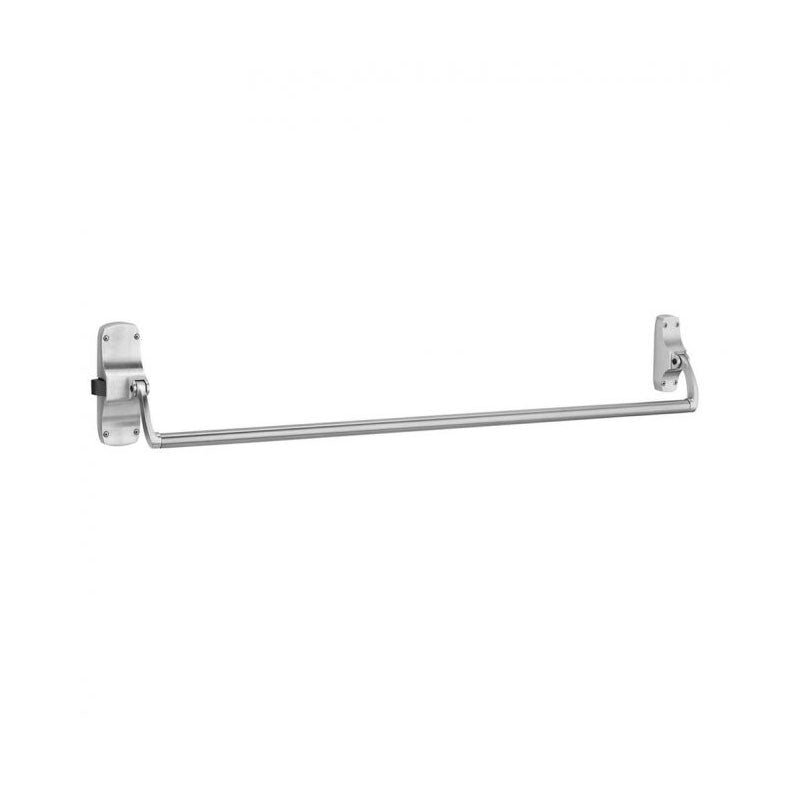

Von Duprin 88L-F-26D Rim Fire Exit Crossbar, 48" Wide Stile Crossbar, Classroom function, Less Trim, & Less Dogging, Exit Only, US26D Satin Chrome Finish

88 Series Rim Crossbar Devices

UL listed for accident hazard installations.

• Device Functions: Ships EO, DT, NL, TP, L, K
• Crossbar Length: 42" (1067 mm) field sizeable Device centerline 39 13/16"
• Crossbar centerline to finished floor: 36 13/16" (935 mm) at center
• Lock stile case: 8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
• Hinge stile case: 6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
• Crossbar tubing: 1" (25 mm) outside diameter
• Projection: Neutral – 4 3/4" (121 mm), Depressed – 4" (102 mm)
• Latch bolt: 3 /4" (19 mm), throw
• Fasteners: All necessary mounting fasteners are included.
