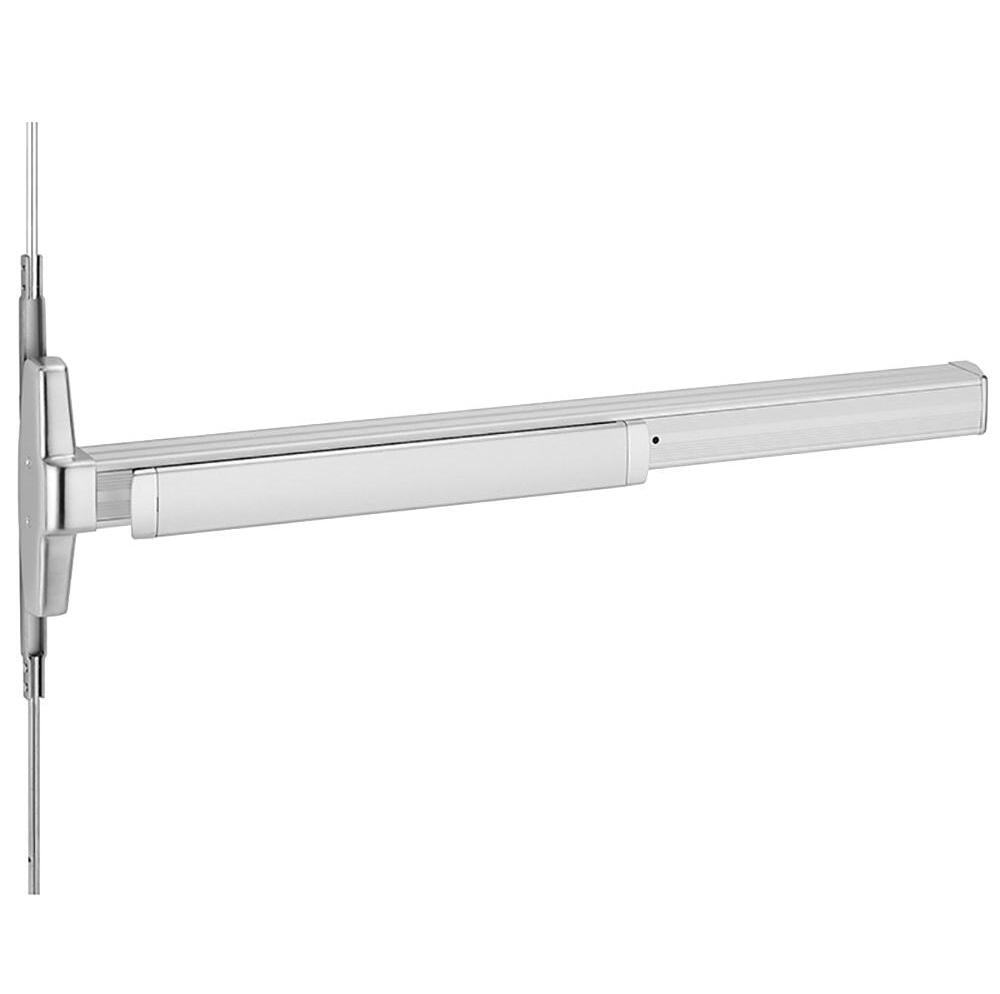

Von Duprin 3347AEO-3 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, For 28"-36" Door Width, For 84" Door Height, Hex Key Dogging, Grade 1, Non Handed
The Von Duprin 3347AEO-3 Concealed Vertical Rod Exit Device is a Grade 1, UL-listed panic exit solution engineered for secure and code-compliant egress on commercial doors. Designed with a concealed vertical rod mechanism and narrow stile pushpad, this exit-only device delivers reliable top and bottom latching while maintaining a clean, professional appearance. It is UL 305 listed and ANSI/BHMA A156.3 Grade 1 certified, making it ideal for high-traffic applications on 28"–36" wide doors with an 84" door height. The non-handed design simplifies installation on single or double doors, while hex key dogging allows the device to be held open during normal business hours. Built for durability and long-term performance, the Von Duprin 3347AEO-3 is a trusted choice for commercial and institutional exit hardware applications.
Features
- Concealed vertical rod exit device for secure, code-compliant egress
- UL 305 listed and ANSI/BHMA A156.3 Grade 1 certified for heavy-duty use
- Non-handed design for simplified installation on single or double doors
- Grooved mechanism case with one-piece center cover for durability
- Narrow stile compatible, fitting metal stiles as small as 2-1/8" and wood stiles as small as 4"
