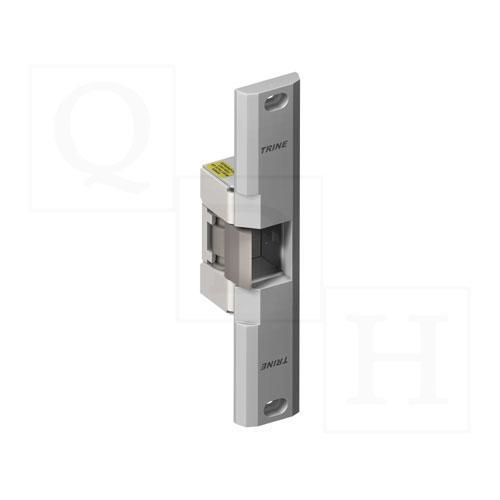

Trine EN850
Electric Strike 630/US32D FINISH
Member of the EN series

Trine EN850 Features

• 1/2" thick faceplate
• For use in new or replacement installation in wood or metal single door frames
• Semi-mortise type - backset 1-1/4" deep
• Use with surface mounted rim exit device with up to 1" throw
• Fail secure/Failsafe: field reversible on DC units
• Mounting and mechanism holes permit horizontal adjustment for ease of installation
• 45 º faceplate ramp

• EN850 Features:

  • Superior Strength -- 2,000+ lbs UL ® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL ^® rating allows the strike to be used anywhere - especially good for gates.
  • For a version that can be used with a Gatebox and mounted anywhere. c
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one-piece locking mechanism with one Solenoid -- fewer parts mean fewer problems.
  • Left and Right handing is field reversible.
  • You go anywhere strike!



  EN850 Specifications:

  • UL ® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • UL294 (6th Edition) listed
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E
  • Not Fire Rated



  EN Series Electrical Characteristics:

  Volts	Current	Ohms (Ω)	Duty	Sound	Wire
  12AC	0.700	4.5	Intm.	Buzz	1-Blue, 1-Orange/White
  24AC	0.370	18.0	Intm.	Buzz	1-Blue, 1-Black/White
  12DC	0.280	43.0	Intm./Cont.	Silent	2-Orange/White
  24DC	0.150	164.0	Intm./Cont.	Silent	2-Black/White




  EN850 Available Finishes

  EN850-32D -- Satin Stainless Steel - BHMA630	EN850-10B -- Dark Bronze - BHMA613
  EN850-US3 -- Bright Brass -- BHMA605	EN850-US4 -- Satin Brass -- BHMA606
  EN850-10 -- Satin Bronze -- BHMA612	EN850-32 -- Polished Chrome -- BHMA629
