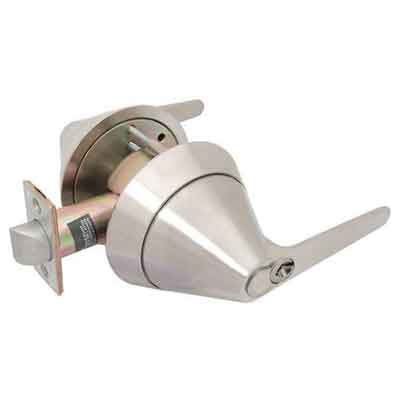

Townsteel TRX-L-86-LFIC-SC-630 Ligature Resistant Storeroom Function Cylindrical Lever Lockset - Schlage Large Format IC Core, Less Core - US32D/630 Satin Stainless Steel
TownSteel TRX-L-86-LFIC-SC-630 Ligature Resistant Storeroom Function Cylindrical Lever Lockset, Schlage Large Format IC Core, Less Core, 2 3/4 Backset, 4 7/8 ASA Strike, Grade 1, Satin Stainless Steel
Please call for 5" backset option.
Technical Specs
Function
86- Storeroom
ANSI Function
F86 - Storeroom
Cylinder Type
Schlage FSIC Less Core
Door Thickness
1-3/4 In. - 2 In.
Std. Latch Type
Dead Latch (Guarded)
Std. Latch Backset Dim
2-3/4 or 5"
Lock Face Size
2-1/4 In. x 1-1/8 In.
Std. Strike Type
ASA
Std. Strike Height
4-7/8 In.
Std. Strike Width
1-1/4 In.
Screws
Combination
Product Type
Cylindrical Lock
The Townsteel TRX-L-86-LFIC-SC-630 Ligature Resistant Storeroom Lever Cylindrical Lockset Accepts Large Format 6 Pin Schlage Interchangeable Core, Less Core. Is offered in 2 3/4" or 5" backset, Townsteel TRX-L-86-LFIC-SC 630 Ligature Resistant Storeroom Lever Lockset Is Ideal For Psychiatric/Behavioral Health Care Units, Detention Facilities. Townsteel TRX Locks Outside Clutching Lever Protects Lock Against Abuse.
