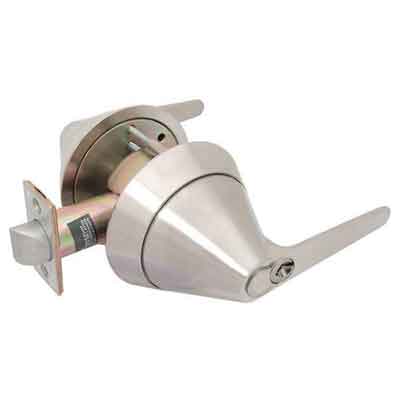

TownSteel TRX-L-80-SFIC 630 Ligature Resistant Communicating Function Cylindrical Lever Lockset, Best Small Format IC Core, Less Core, 2 3/4 Backset, 4 7/8 ASA Strike, Grade 1, Satin Stainless Steel
Please call for 5" backset option.
| Function |
80- communicating
|
| Cylinder Type |
SFIC Prep Less Core |
| Door Thickness |
1-3/4 In. - 2 In. |
| Std. Latch Type |
Dead Latch (Guarded) |
| Std. Latch Backset Dim |
2-3/4 In. |
| Lock Face Size |
2-1/4 In. x 1-1/8 In. |
| Std. Strike Type |
ASA |
| Std. Strike Height |
4-7/8 In. |
| Std. Strike Width |
1-1/4 In. |
| Screws |
Combination |
| Product Type |
Cylindrical Lock |
The Townsteel TRX-L-80-SFIC-630 Ligature Resistant Communicating Cylindrical Lever Lockset Accepts Best Small Format SFIC Interchangeable Core, Furnished with fewer Cores. The TRX L 80 Has a Satin Stainless Steel Finish. Townsteel TRX-L-SFIC-80 Is a Grade 1 LockSet, 2 3/4" or 5" backset options, Is Ideal For Use In Institutions, Behavioral Health / Psychiatric Care Units, and Detention Facilities. Townsteel TRX Locks Outside Clutching Lever Protects Lock Against Abuse.
Communicating Lock function is defined as a lock where the deadlocking latch bolt is operated by the lever from either side. The turn button or locking device on either side locks or unlocks the opposite lever. Do not use this function on doors in rooms that have no other entrance.
