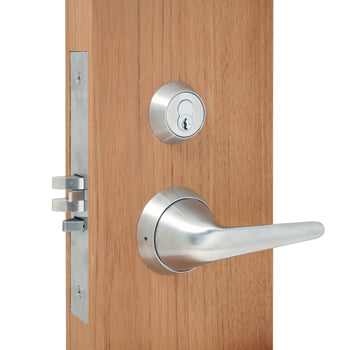

Townsteel MRX-S-L-05 Ligature Resistant Classroom Mortise Lever Lockset with Sectional Trim - 2 3/4" Backset, Schlage C Cylinder KR, US32D/630 Satin Stainless Steel Finish
Townsteel MRX-S-L-05 is a Grade 1 Heavy Duty Passage/Closet function Ligature Resistant Mortise Lever Lockset with Sectional trim. The Townsteel MRX-S-L-05 has a 2 3/4" backset, Schlage C Cylinder KR, and comes in US32D/630 Satin Stainless Steel Finish.
Features
High-quality Stainless steel components
Meets or exceeds all performance testing of ANSI A156.13 Grade 1 mortise locks
An integral part of your Health/Safety and Accident Prevention programs
The mortise is UL listed for a 3-hour fire door
Clutching mortise
Field changeable clutching function can be activated for I/S and/or O/S levers
Clutching mortise with Entrance or Exit - Lever rotation would be over 50 °. When locked the O/S lever (clutching side) is free rotating in the up or down position, I/S lever rotates upward and downward
Variety of mortise functions available to fit your unique security and safety requirements
Non-Handed field reversible
Specifications
Door Thickness:
1-3/4" standard, other door thickness available when specified
Backset:
2-3/4"
Lock Case:
Heavy Gauge Plated Steel
Armored Front:
Wrought stainless steel or brass-adjustable angel and attached by screws to the lock case front
