All TOWNSTEEL Products

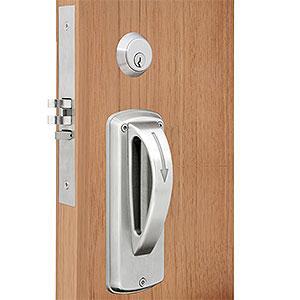

Townsteel MRX-A-RF-630 Heavy Duty Ligature Resistant Female Privacy Mortise Lock Arch Trim, Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXARF630LH
Townsteel MRX-A-RF-630
Townsteel MRX-A-RF-630
Townsteel MRX-A-RF
Zoomed view
All TOWNSTEEL Products

Townsteel MRX-A-RF-630 Heavy Duty Ligature Resistant Female Privacy Mortise Lock Arch Trim, Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXARF630LH
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
Dhs. 4,029.00/ea
Handing: LH Left Hand

TownSteel MRX-A-RF-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Female Privacy RF Function With T Turn, Schlage "C" Keyway, Keyed Random, [2] Keys, ANSI, Grade, US32D Satin Stainless Steel

The TownSteel MRX-A-RF-630 delivers institutional-grade security with its five-point ligature-resistant mortise mechanism, engineered to meet stringent safety standards. This female privacy lockset features an arch trim design and T-turn activation, providing controlled access suitable for healthcare, correctional, and behavioral health facilities. Equipped with a Schlage C cylinder and supplied with two randomly keyed keys, it meets ANSI Grade specifications. The US32D satin stainless steel finish offers corrosion resistance and durability in demanding environments where reliability is non-negotiable.

Function
RF Female Privacy
Lever/Knob Design
Arch Trim
Handed Yes
Door Thickness 1-3/4 In.
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Std. Strike Type ASA
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock





Product Cut Sheet

Cylinder Mortise Handing Chart
