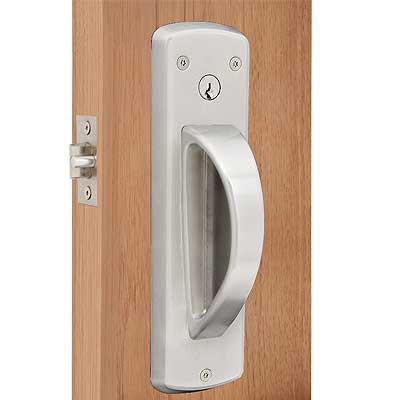

Townsteel CRX-A-84-SFIC-630 Ligature Resistant Cylindrical Classroom Lock 5 Point With Arch Trim - Best Small Format IC Core, Less Core, US32D Satin Stainless Steel Finish

The Townsteel CRX-A-84-SFIC-630 Ligature Resistant Classroom Lock 5 Point With Arch Trim In A Satin Stainless Steel Finish. Townsteel CRX-A-84-SFIC-32D Accepts a Best, Arrow, Or Falcon Interchangeable Core, sold Less Core. UL 10C 3-hour rated.

Specification

-ANSI Grade 1 heavy-duty cylindrical with

5‐point ligature-resistant arch trim

-Backset 2‐3/4” standard, 5” optional

-Door thickness: 1‐3/4”, other upon request

-Stainless steel arch trim, 2‐5/8” projection

-Stainless steel plate, 9‐5/8” x 2‐13/16”

-Stainless steel deadlocking latch bolt,  ½”

throw

-Stainless steel ASA strike standard

-Tamper-resistant mounting screws

-Handed, specify handing

Cylinder:

-Schlage® “C” keyway, brass 6-pin cylinder

standard

-Best® Small Format I.C. available, 6 or 7 Pin,

with or without the core.

-Schlage® Large Format I.C. less core

available

-Corbin® Large Format I.C. less core

available

-High-security cylinder available, TownSteel

“L” keyway, 6 pin

-Keying: KD standard, KA, MK, GMK, GGMK

and construction keying available

Available functions: F‐75, 76, 84, 86, Single

Dummy (F‐41), Pair Dummy(F‐72)

Door Prep: 161 plus 2‐1/8” cylinder hole

and ½” bottom post hole

10‐year manufacturer’s limited warranty

Code Compliance

-ANSI/BHMA A156.2‐2011 Grade 1

certified

-UL 10C Listed 3‐Hour Fire Rating

-Meets guidelines of The Americans with

Disabilities Act

-Meets requirements of The Buy American

Act

-OMH of New York State Approved

Available Function

ANSI CODE  DESCRIPTION

F‐75    Passage

F‐76    Privacy

F‐84    Classroom

F‐86    Storeroom

F‐41    Single Dummy

F‐72    Pair Dummy
