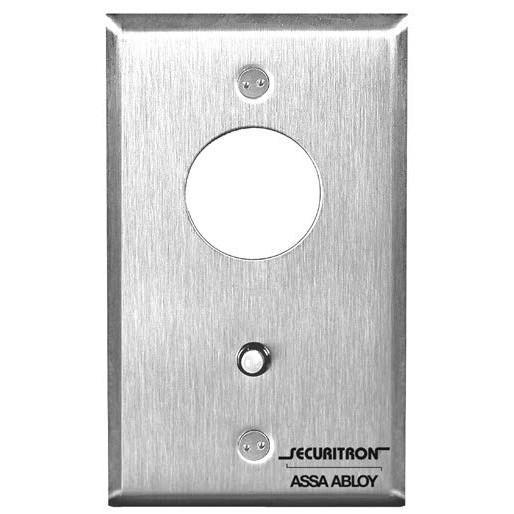

Securitron MKA Alternate Action Keyswitch, Single Gang, SPDT, Less Mortise Cylinder, Stainless Steel
Securitron MK Features
The MK Keyswitch supports electric lock control; alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".
Standard with 12 or 24VDC bi-color LED
The backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
Additional switch position on the backing bracket allows another switch to be activated by turning the key in the opposite direction
5 Amp rated plunger switch
Includes anti-tamper screws
SPDT: Single Pole - Double Throw (SPDT) Switches with one input and two outputs. When the switch operation occurs, the connection shifts from output A to output B
Alternate Switch: An alternate switch changes state upon activation and does not change back until reactivated.
