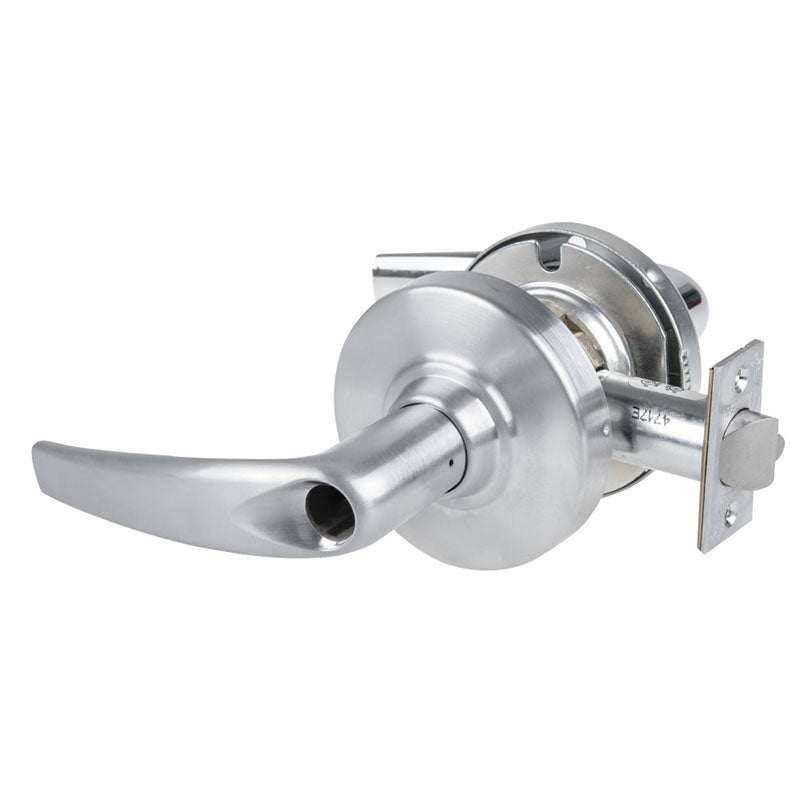

Schlage ND80LD-ATH-626 Storeroom Cylindrical Lock, Athens Lever, Less Cylinder, Satin Chrome

Technical Specs

Product Specs

The Schlage ND80LD-ATH-626 is a Storeroom Cylindrical Lock, with an Athens Lever, Sold Less Cylinder, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1, and comes in 626 Satin Chrome finish.

Storeroom Function - The outside lever is fixed, entrance by key only. The inside lever is always unlocked.

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
• 31 mechanical functions
• Nine lever designs, two rose designs
• 10 available finishes
• Supports standard, SFIC and FSIC cylinder formats
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cores
