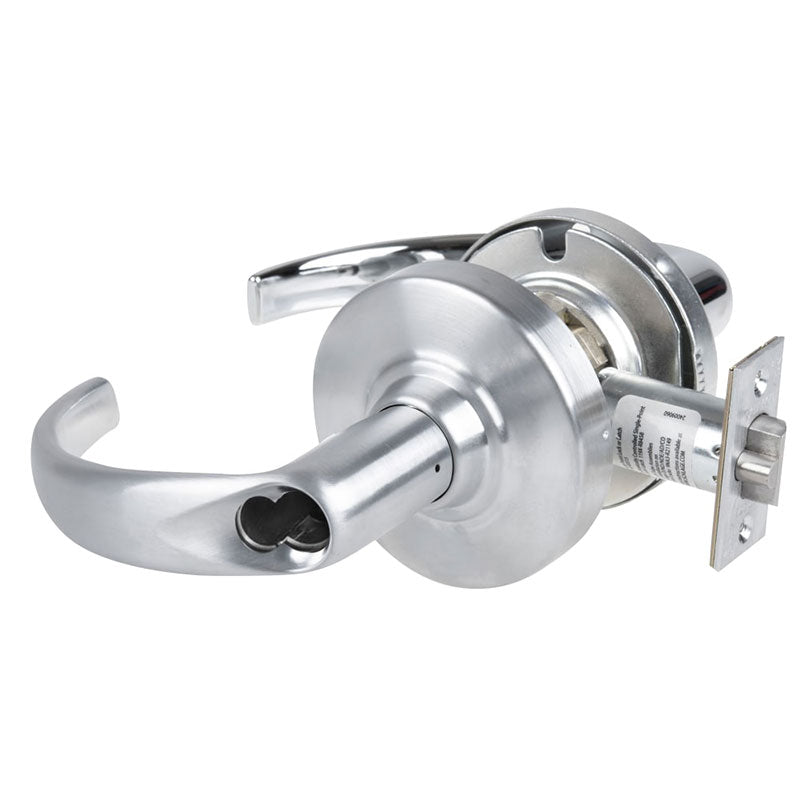

The Schlage ND75JD-SPA-626 is a Cylindrical Classroom Security Lock, with a Sparta Lever, is prepped for a Schlage FSIC Large Format Interchangeable Core, is Sold Less Core, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.
Classroom Security Function - Key in either lever locks or unlocks outside lever. Inside lever is always unlocked.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Manufacturer | Schlage |
SKU | ND75JD SPA |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL/cUL Listed |
ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
BAA Qualified | Yes |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Function | 75 Classroom Security Lock |
Function Family | Classroom Security |
Lever/Knob Design | SPA Sparta Lever |
Lever/Knob Design Family | Curved Return Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions | 3-7/16" |
Cylinder Type |
Schlage FSIC Prep Less Core |
Handing | Non-handed |
Door Thickness | 1-5/8 In. to 2-1/8 In. |
Std. Latch Number | 13-247 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4 In. |
Latch Bore Diameter | 1 In. |
Lock Face Size | 1-1/8 In. x 2-1/4 In. |
Bolt Projection | 1/2 In. |
Bore Hole Diameter | 2-1/8 In. |
Std. Strike Number | 10-025 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
