Schlage Mortise Cylinders- For Von Duprin Mortise Trim

  • SKU: 20001C114626
Schlage 20-001 C 114 626
Schlage 20-001 C 114 626
Schlage 20-001 C 114 613
Schlage Mortise Cylinders- For Von Duprin Mortise Trim
26-094-613
Schlage 80-102-626 SFIC Mortise Housing w/Compression Ring, Spring, 1/4" Blocking Ring
80-102-613
Zoomed view
All SCHLAGE Products

Schlage Mortise Cylinders- For Von Duprin Mortise Trim

  • SKU: 20001C114626
  • ✓
    Available
    Available
Your Price
Dhs. 416.00/ea
Finish: US26D-626 Satin Chrome
Cylinder: Schlage 20-001 (Schlage C Keyway)

Schlage Mortise Cylinders- For Von Duprin ALK

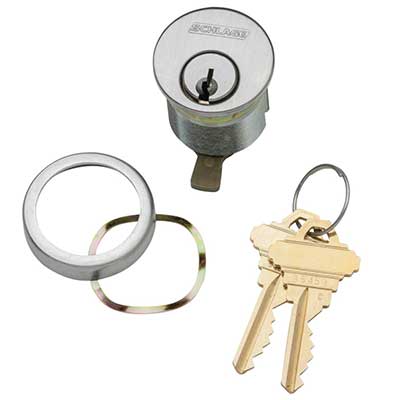

Schlage 20-001 C 114 Mortise Cylinder, 6-pin, 1-1/4 In, C Keyway, Keyed Different, Straight Cam, Compression Ring & Spring, Keyed Random With 2 Change Keys, Non-handed

Cylinder Type
Mortise Cylinder
Num Pins 6
Std. Keyway C
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Cylinder Length 1-1/4 In.
Cam Type Straight
Cam Number L583-477
For Use With Schlage L Mortise Locks L9060 Exterior
Handing Non-handed
Product Type Mortise Cylinder

Schlage 80-102 SFIC Mortise Housing, 1-3/8 In.Straight Cam, Compression Ring, Spring, 1/4 In. Blocking Ring

Cylinder Type SFIC Prep Less Core
Cylinder Length 1 3/8"
Cam Type Straight
Cam Number K510-730
For Use With Exit Bars
Handing Non-handed
Product Type SFIC Mortise Housing

Schlage 26-094 FSIC Mortise Cylinder Housing, w/Compression Ring, Spring & 3/8" Blocking Ring

Cylinder Type FSIC Prep Less Core
Cylinder Length 1 1/2"
Cam Type Straight
Cam Number K510-730
For Use With Exit Bars
Handing Non-handed
Product Type FSIC Mortise Housing
Product Cut Sheet
