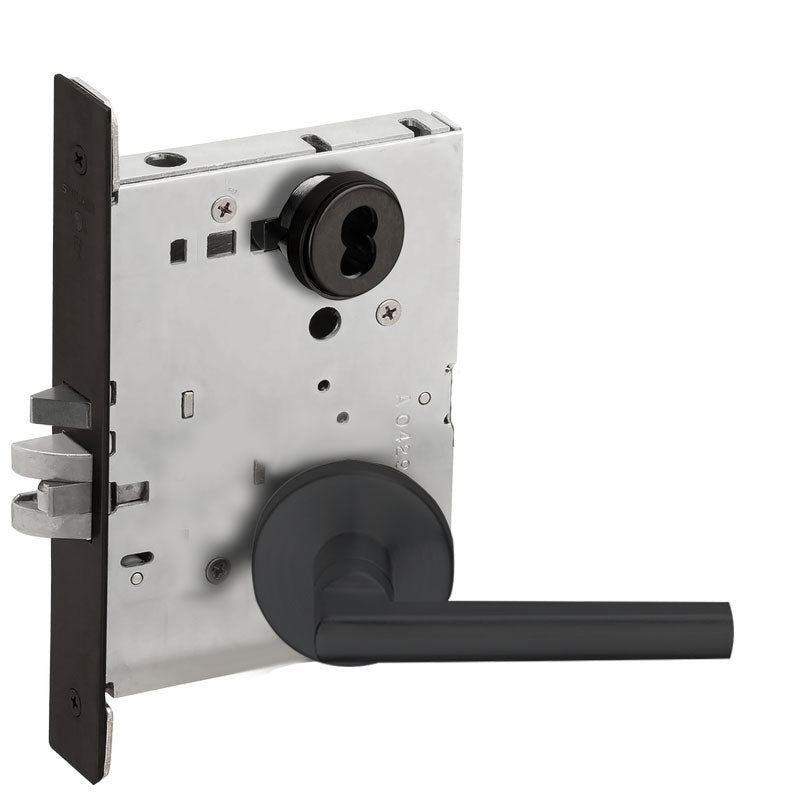

Schlage L9070B LATA 622 Classroom Mortise Lock, SFIC Prep Less Core, LAT Latitude Lever, A Rose, Field Reversible, Grade 1, Satin Stainless Steel Finish
The Schlage L9070B LATA 622 is a Grade 1 Classroom function lock. This L9000 Series function is an 70 or Classroom function. A Classroom function lock functions, Latchbolt retracted by lever/ knob from either side unless outside lever is locked by key, Unlocked from outside by key, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate egress. The LATA is the LAT Latitude lever and A Rose. B stands for the Sfic small format interchangeable core sold less cylinder. The finish is a 622 Flat Black Coated finish.
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
Manufacturer | Schlage |
SKU | L9070B LATA 622 |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL Listed |
ANSI Number | A156.13-2017 Series 1000 |
Limited Warranty | 3 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Finish | 622/US19 |
Finish Description | Flat Black Coated |
Finish Family | Black |
Function | 9070 Classroom |
Function Family | Classroom |
ANSI Function |
F05 - Classroom |
Lever/Knob Design |
LAT - Latitude Lever |
Lever/Knob Design Family | Straight Lever |
Rose/Escutcheon Design |
A Rose |
Rose/Escutcheon Dimensions | 2 1/8" |
Cylinder Type |
SFIC Prep Less Core |
Num Pins | 6 to 7 |
Cylinder Length | 1 3/8" |
Cam Type | Schlage L |
Cam Number | L583-255 |
Handing | Field Reversible |
Door Thickness | 1 3/4" |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2 3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 10-072 1316 622 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4 7/8" |
Std. Strike Width | 1 3/16" |
Dust Box | Plastic |
Screws | Combination |
Product Type | Mortise Lock |
