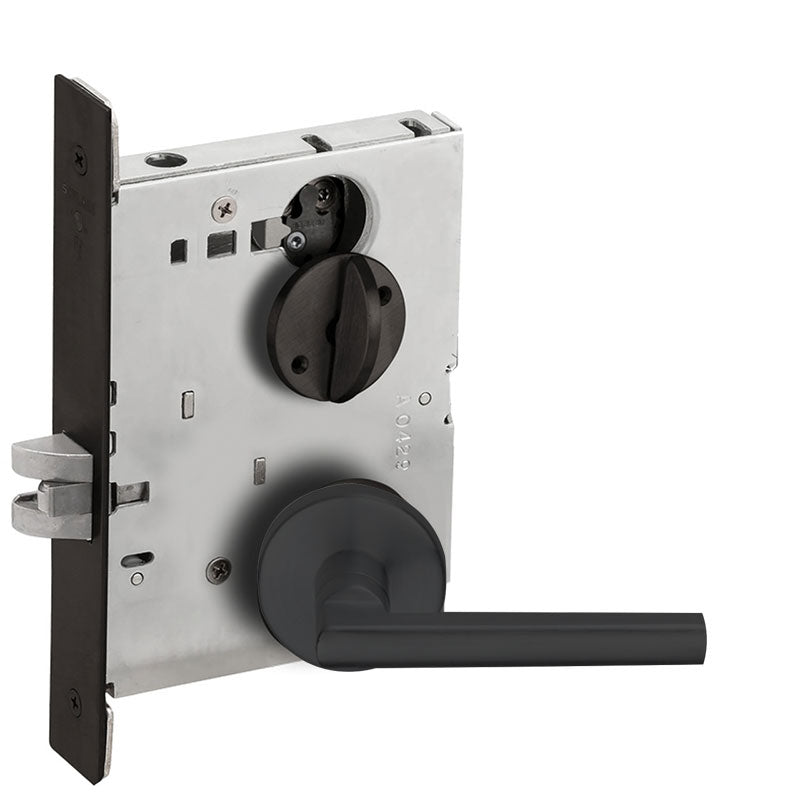

Schlage L9040 LATA 622 Bed Bathroom, Privacy Mortise Lock, LAT Latitude Lever, A Rose, 4 7/8" Strike, Field Reversible, Flat Black Coated Finish
The Schlage L9040 LATA 622 is a Grade 1 Bed, Bathroom, Privacy function lock. This L9000 Series function is a 40 or Bed, Bathroom, Privacy function. A Bed, Bathroom, Privacy function lock functions, Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumb-turn. Turning the inside knob/lever or closing door unlocks the outside knob/lever. The LATA is the LAT Latitude Lever and A Rose. The finish is a 622 Flat Black Coated finish.
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The ability to suit electronic, tubular, exit trim, and multi-point locks allow the Schlage L Series mortise lock to integrate seamlessly into any environment.
Manufacturer | Schlage |
SKU | L9040 LATA 622 |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL Listed |
ANSI Number | A156.13-2017 Series 1000, Grade 1 |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | 3 Hours {A} |
Finish | 622/US19 |
Finish Description | Flat Black Coated |
Finish Family | Black |
Function | 9040-Bed Bathroom Privacy |
ANSI Function |
F22 - Privacy |
Lever/Knob Design |
LAT - Latitude Lever |
Lever/Knob Design Family | Straight Lever |
Rose/Escutcheon Design |
A Rose |
Rose/Escutcheon Dimensions | 2 1/8" |
Handing | Field Reversible |
Door Thickness | 1 3/4" |
Std. Latch Type | Spring Latch (Unguarded) |
Std. Latch Backset Dim | 2 3/4" |
Latch Bore Diameter | 2 3/4" |
Lock Face Size | 8" x 1 1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 10-072 1316 622 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4 7/8" |
Std. Strike Width | 1 3/16" |
Dust Box | Plastic |
Screws | Machine |
Product Type | Mortise Lock |
