Description

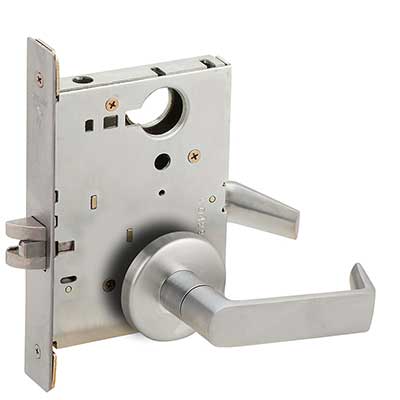

Schlage L9010 06B 626 Passage Lever Mortise Lockset Passage Latch Mortise Lock, 06 Lever Straight Return Lever, B Rose, 4 7/8" Strike, Field Reversible, Satin Chrome Finish
The Schlage L9010 06B 626 is a Grade 1 Passage function lock. This L9000 Series function is an 10 or Passage function. A Passage function lock functions, Latchbolt retracted by lever/knob from either side at all times, Inside lever always free for immediate egress. The 06B is the 07 Straight Return Lever and B Rose. The finish is a 626/US26D satin chrome finish.
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
Product Specs
Manufacturer | Schlage |
Grade | Grade 1 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL Listed |
ANSI Number | A156.13-2017 Series 1000, Grade 1 |
BAA Qualified | Yes |
Limited Warranty | 3 Years |
Fire Rated | 3 Hours {A} |
Technical Specs
Function | 9010-Passage Latch |
ANSI Function |
F01 - Passage |
Lever/Knob Design |
06 Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
B Rose |
Rose/Escutcheon Dimensions | 2-1/8" |
Handing | Field Reversible |
Door Thickness | 1-3/4" |
Std. Latch Type | Spring Latch (Unguarded) |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 2-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 10-072 1316 626 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-3/16" |
Dust Box | Plastic |
Screws | Combination |
Product Type | Mortise Lock |
