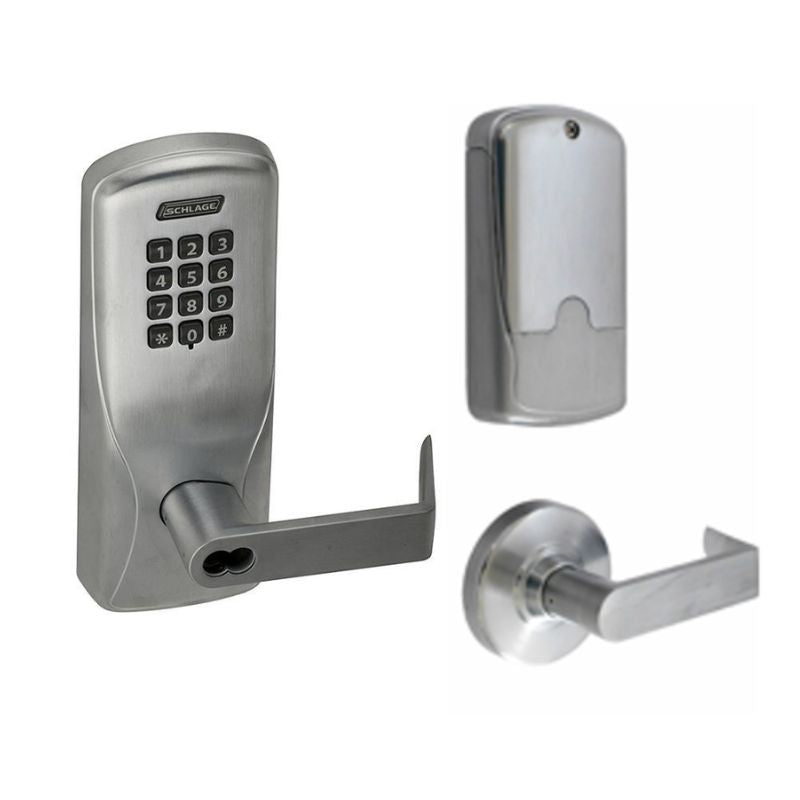

Schlage Electronics CO100CY70-KP-RHO-626-J Classroom/Storeroom Electronic Cylindrical Keypad Lock, FSIC Prep Less Core, Rhodes Style Lever, Satin Chrome Finish

  • SKU: CO100CY70KPRHO626JL
Schlage Electronics CO100CY70-KP RHO-626-J
Zoomed view
All SCHLAGE ELECTRONICS Products

Schlage Electronics CO100CY70-KP-RHO-626-J Classroom/Storeroom Electronic Cylindrical Keypad Lock, FSIC Prep Less Core, Rhodes Style Lever, Satin Chrome Finish

  • SKU: CO100CY70KPRHO626JL
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 2,283.00/ea
Handing: LH Left Hand

Schlage Electronics CO100CY70-KP-RHO-626-J Classroom-Storeroom Cylindrical Keypad Lock, 500 Users, Rhodes Style Lever, Deadlatch, FSIC Prep Less Core, Grade 1, US26D Satin Chrome Finish

The Schlage Electronics CO100CY70-KP-RHO-626-J Classroom-Storeroom Cylindrical Keypad Lock delivers Grade 1 commercial security with convenient keyless access control for schools, offices, and institutional facilities. Featuring a durable Rhodes style lever, US26D satin chrome finish, and a deadlatch for enhanced protection, this UL-listed electronic lock supports up to 500 unique users via an intuitive pushbutton keypad. Designed for 1-3/4″ doors, fire-rated up to 3 hours, and powered by long-lasting AA batteries, the CO100 offers reliable standalone operation without software requirements. With FSIC prep-less core compatibility, ADA compliance, and ANSI/BHMA certification, this Schlage keypad lock is a dependable solution for high-traffic commercial environments.

Manufacturer Schlage Electronics
SKU CO100CY70KPRHO626J
Grade Grade 1
Unit of Measure Each
Installation Commercial
Base Material Pressure Cast Zinc
Fire Rating 3 Hours {A}
ADA Compliance Yes
UL Listing UL 294, ULC S319, UL 10C Listed
ANSI ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Fire Rated Yes
Door Thickness 1-3/4"
Latch Backset Dim 2-3/4"
Bolt Projection 1/2"
Screws Combination
Lever/Knob Design RHO - Rhodes Style Lever
Std. Latch Backset Dim 2-3/4"
Function Family Storeroom
Std. Latch Type Dead Latch (Guarded)
Std. Strike Type ANSI Strike
Lever/Knob Design Family Curved Lever
Cylinder Type FSIC Prep Less Core
Latch Backset Dimension 2-3/4"
Power 4 AA Batteries
Operating Voltage 4 to 7 VDC
AMP Draw 250 mA
Std. Strike Height 1-1/4"
Std. Strike Width 4-7/8"
Keypad Type Pushbutton
Battery Life 2 Years
Software Included No
# Users 500
Dust Box No
Std. Latch Number 13-247 626
Std. Strike Number 10-025 626
Bolt Throw 1/2"
Lock Platform Cylindrical Lock with Keypad
Reader Technology Keypad Reader
Function 70-Classroom/Storeroom
